Front Halfshaft RH - Attach To The Transmission

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: Install a new component if it is damaged or has excessive wear.

Clean and inspect the inner halfshaft splines and mating surfaces.
If equipped.

Courtesy of FORD MOTOR COMPANY

Rotate the steering wheel fully to the LH side.

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

NOTE: The inner constant velocity (CV) joint must not be bent more than 18 deg..

NOTE: The outer constant velocity (CV) joint must not be bent more than 45 deg..

NOTE: Do not fully install shaft at this time.

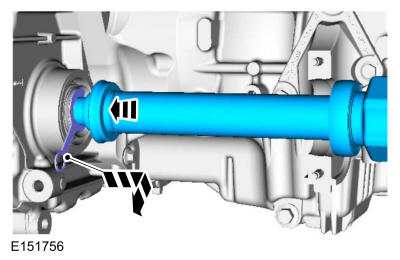

Using seal protector, insert the halfshaft splines through the seal protector. Remove the seal protector before completely installing the halfshaft.

Courtesy of FORD MOTOR COMPANY

Inspect and install the RH halfshaft through the seal protector.

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that new components are installed.

Install the new halfshaft retaining strap and the new halfshaft retaining strap nuts.

Torque: Stage 1: 44 lb.in (5 Nm); Stage 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that the component is correctly installed.

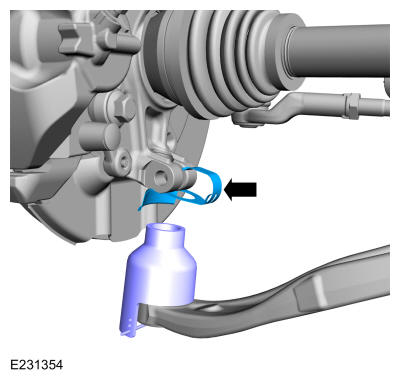

Insert the metal ball joint protection onto the wheel knuckle and removal the lower arm ball joint cover.

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure a new bolt is installed.

NOTE: Make sure that a new nut is installed.

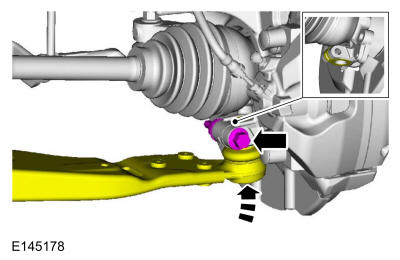

Insert the lower ball joint into the wheel knuckle and install a new lower ball joint bolt and nut.

Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that the component is correctly installed.

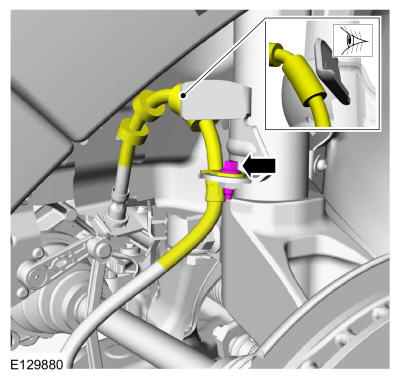

Install the flexible brake hose bolt.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

Attach the tie rod and install a new tie rod nut

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

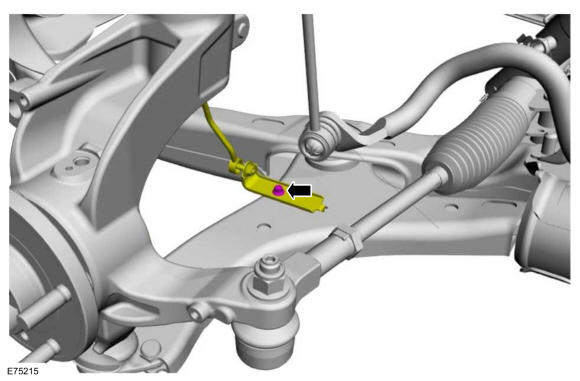

If equipped.

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
