Front Halfshaft LH - Attach To The Transmission

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: Make sure that a new component is installed.

Install a new halfshaft retaining circlip.

Courtesy of FORD MOTOR COMPANY
Rotate the steering wheel fully to the RH side.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

NOTE: The inner constant velocity (CV) joint must not be bent more than 18 deg..

NOTE: The outer constant velocity (CV) joint must not be bent more than 45 deg..

NOTE: Take extra care not to damage the seal.

NOTE: Do not fully install the shaft at this time

Using seal protector, insert the halfshaft splines through the seal protector. Remove the seal protector before completely installing the halfshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on the outer CV joint or damage can result.

NOTE: Make sure that the component is correctly installed.

Remove the seal protector before completely installing the LH halfshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

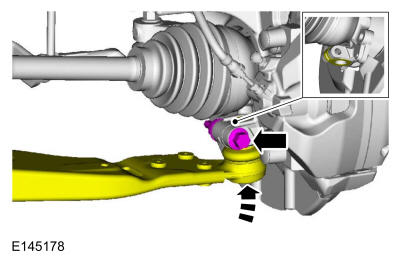

Insert the lower ball joint into the wheel knuckle and install the lower ball joint bolt and nut.

Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY
Install the flexible brake hose bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
