System Diagrams

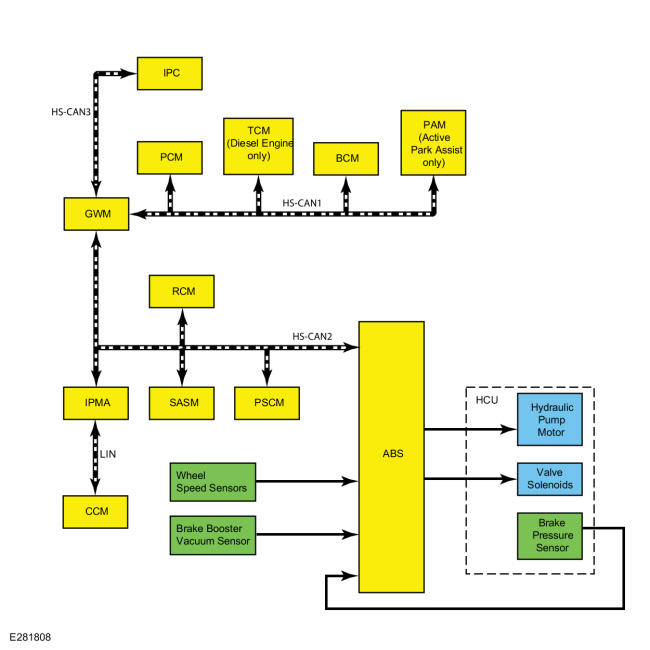

ABS and Stability Control System Diagram

GFD570114

Courtesy of FORD MOTOR COMPANY

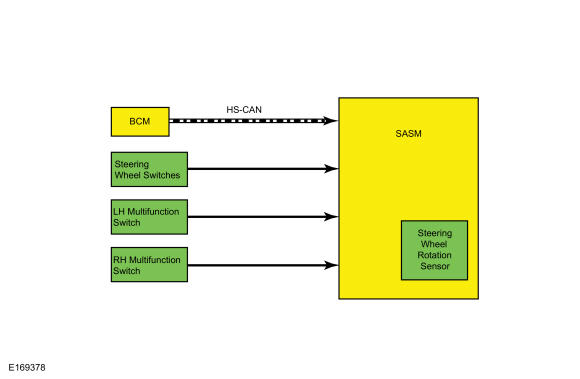

SASM System Diagram

GFD570115

Courtesy of FORD MOTOR COMPANY
