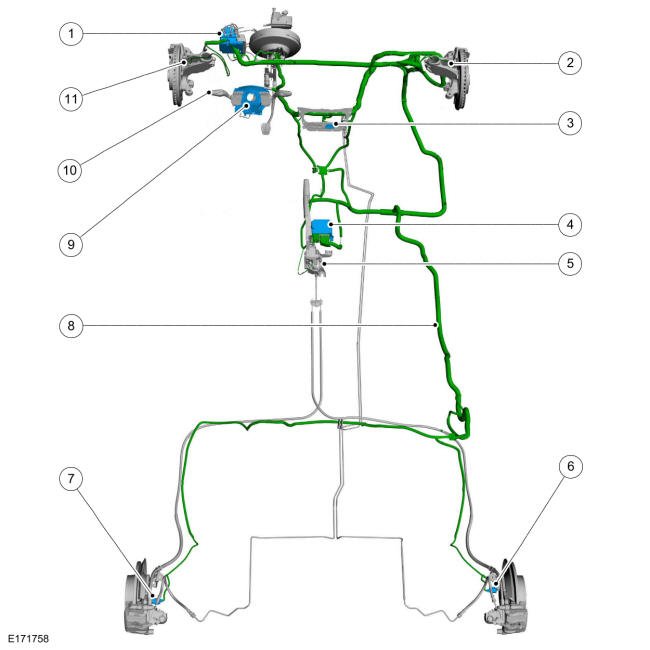

| 1 |
ABS module and HCU |
| 2 |
Wheel speed sensor, right-hand front wheel |
| 3 |
Electronic stability control switch (installation position depends on the vehicle equipment) |
| 4 |
RCM |
| 5 |
Parking brake switch |
| 6 |
Wheel speed sensor, right-hand rear wheel |
| 7 |
Wheel speed sensor, left-hand rear wheel |
| 8 |
Wiring loom |
| 9 |
Module - SCCM with integrated steering wheel rotation sensor |
| 10 |
Left-hand multifunction switch - steering wheel with switch - electronic stability control switch (installation position depends on the vehicle equipment) |
| 11 |
Wheel speed sensor, left-hand front wheel |
