Rear Brake Pads: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove wheel and tire. Refer to: WHEELS AND TIRES .

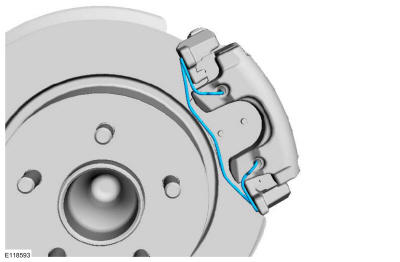

Remove the brake caliper spring.

Courtesy of FORD MOTOR COMPANY
Remove the caps.

Courtesy of FORD MOTOR COMPANY
Remove the brake caliper guide pins and position aside the brake caliper.
Torque

: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of each component before removal.

NOTE: Make sure that the mating faces are clean and free of foreign material.

Remove the brake pads.

Courtesy of FORD MOTOR COMPANY
Retract the brake caliper pistons into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor

Courtesy of FORD MOTOR COMPANY
