Rear Brake Flexible Hose: Installation

1. Position the brake hose and make sure the marks are aligned.
2. Tighten the fitting.
  Torque

  : 159 lb.in (18 Nm)
3. Install the brake hose bracket bolt.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

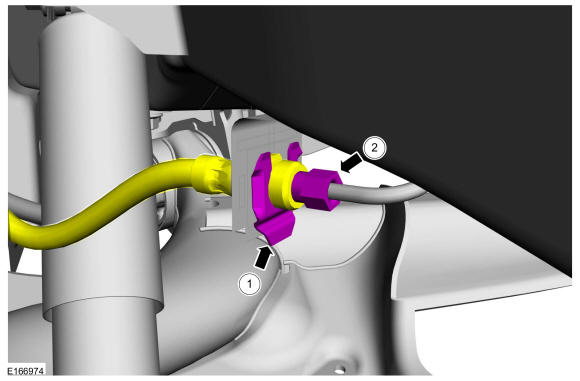

1. Position the hose and install the clip.
2. Tighten the brake tube fitting.
  Torque

  : 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
Bleed the brake system. Refer to: Component Bleeding .
