Rear Brake Disc: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: WHEELS AND TIRES .
-
NOTE: Make sure that no load is placed on the brake hose.
Remove the bolts and position aside the brake caliper and anchor plate assembly. Discard the bolts.
Torque
: 81 lb.ft (110 Nm)

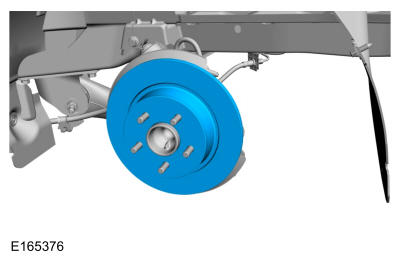

- Remove the brake disc.
