Rear Brake Caliper Anchor Plate: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove wheel and tire. Refer to: WHEELS AND TIRES .
Remove the caps.

Courtesy of FORD MOTOR COMPANY

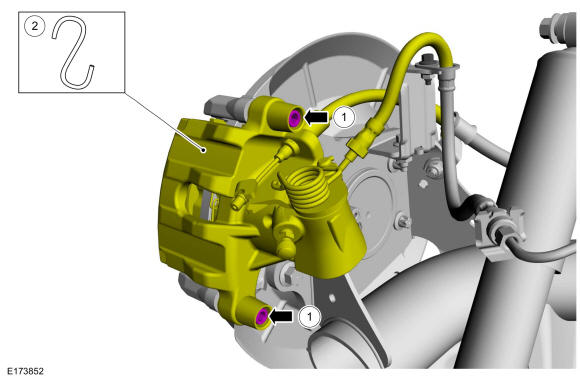

Remove the brake caliper guide pins and position aside the brake caliper.
Torque

: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

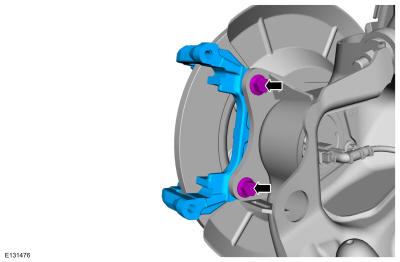

Remove the bolts and the brake caliper anchor plate. Discard the bolts.
Torque

: 81 lb.ft (110 Nm)

Courtesy of FORD MOTOR COMPANY
