Brake Pedal and Bracket - RHD FWD: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of FORD MOTOR COMPANY
|

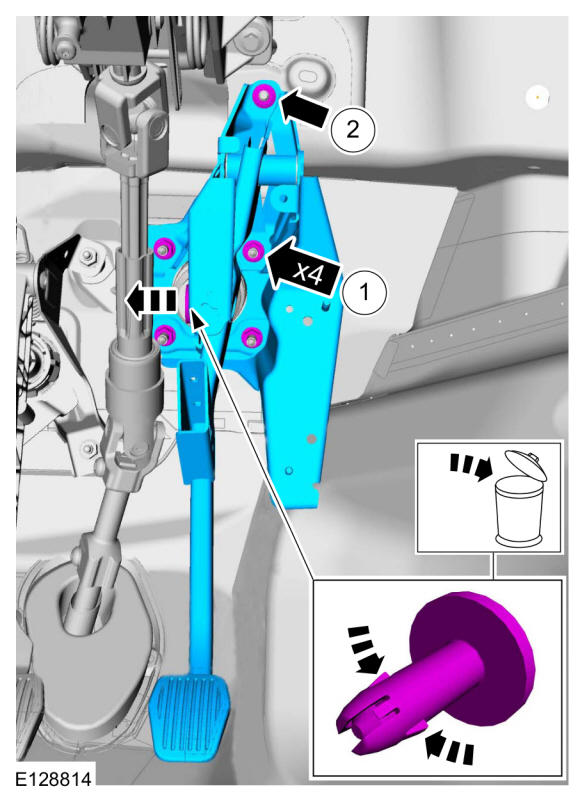

NOTE:
Make sure that the brake pedal remains in the rest position.
Torque: 71 lb.in (8 Nm)
 Courtesy of FORD MOTOR COMPANY
|

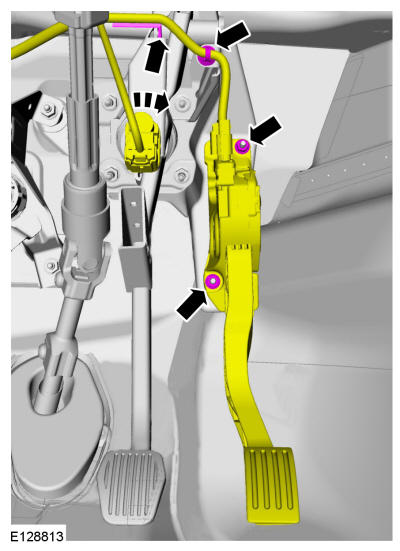

NOTE:
Make sure that the brake pedal remains in the rest position.
- Torque: 17 lb.ft (23 Nm)
- Torque: 35 lb.ft (47 Nm)
 Courtesy of FORD MOTOR COMPANY
|
