Brake Master Cylinder: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the battery tray. Refer to: BATTERY TRAY - 2.0L DURATEC-HE (110KW/150PS) - MI4 or BATTERY TRAY - 2.5L DURATEC (125KW/170PS) .
NOTE: Make sure that all openings are sealed.

NOTE: Make sure that new nuts are installed.

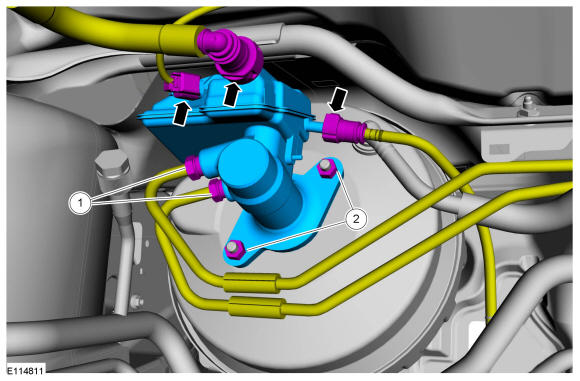

- Disconnect the brake fluid level sensor electrical connector.
- Release the couplings and disconnect the remote fluid reservoir tube and, if equipped, the clutch master cylinder tube.
- Disconnect the brake tube fittings.
- Remove the nuts and the brake master cylinder. Discard the nuts.
  Torque: 1: 159 lb.in (18 Nm)

  2: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new master cylinder.

Remove the brake fluid reservoir. Refer to: Brake Fluid Reservoir .
