Brake Fluid Reservoir: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake master cylinder. Refer to: Brake Master Cylinder .

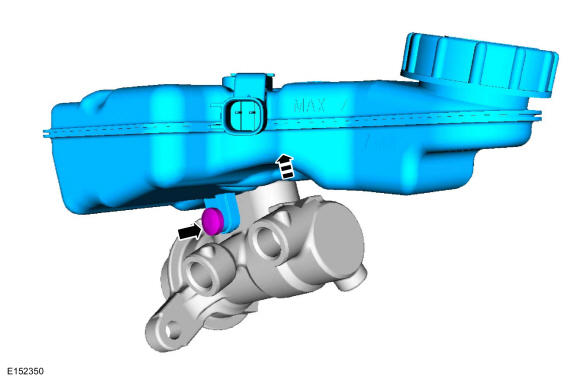

- Remove the pin and the brake fluid reservoir.
Torque: 31 lb.in (3.5 Nm)
-
NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.
Remove and discard the brake fluid reservoir seals. Refer to: SPECIFICATIONS .
