Front Front Brake Caliper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

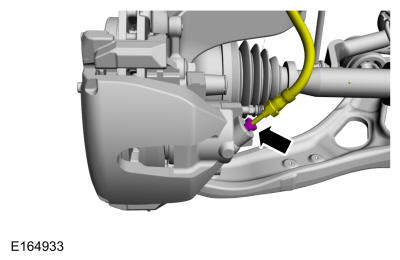

  2. Loosen the brake hose fitting and disconnect the brake hose.
    GFD570035Courtesy of FORD MOTOR COMPANY
  3. Remove the brake caliper spring.
    GFD570036Courtesy of FORD MOTOR COMPANY

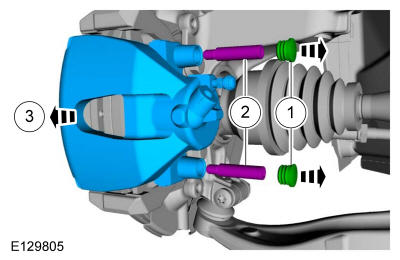

    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque: 21 lb.ft (28 Nm)

    3. Remove the brake caliper.
    GFD570037Courtesy of FORD MOTOR COMPANY
  5. Remove the outboard brake pad.
    GFD570038Courtesy of FORD MOTOR COMPANY
  6. Remove the inboard brake pad.
GFD570039Courtesy of FORD MOTOR COMPANY
