Front Brake Flexible Hose: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

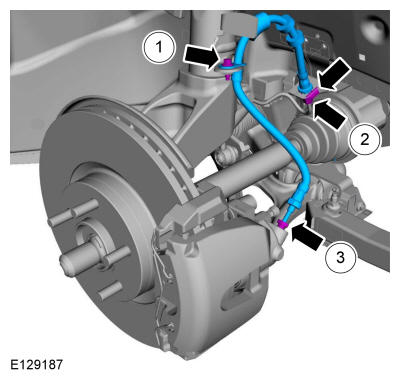

    1. Remove the brake flexible hose bracket bolt.
    2. Disconnect the brake tube fitting and remove the brake hose clip.
    3. Loosen the brake hose fitting and remove the brake flexible hose.
GFD570056Courtesy of FORD MOTOR COMPANY
