Brake Caliper Anchor Plate: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
Remove the brake caliper spring.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

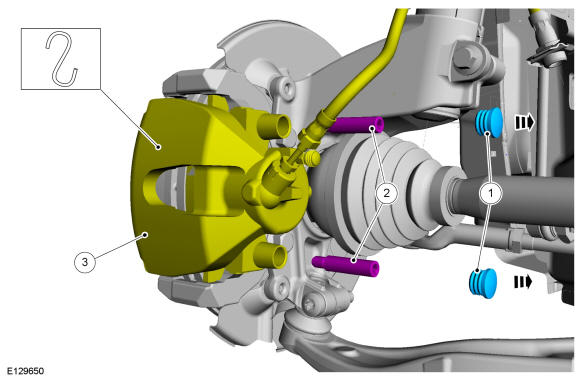

1. Remove the caps.
2. Remove the brake caliper guide pin bolts.
  Torque: 21 lb.ft (28 Nm)
3. Position the brake caliper aside.
Courtesy of FORD MOTOR COMPANY
Remove the outboard brake pad.

Courtesy of FORD MOTOR COMPANY

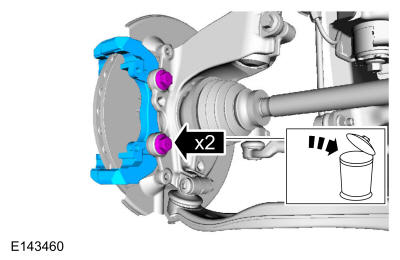

Remove the bolts and the brake caliper anchor plate.
Torque: 129 lb.ft (175 Nm)

GFD570045

Courtesy of FORD MOTOR COMPANY
