Brake Caliper Anchor Plate: Installation

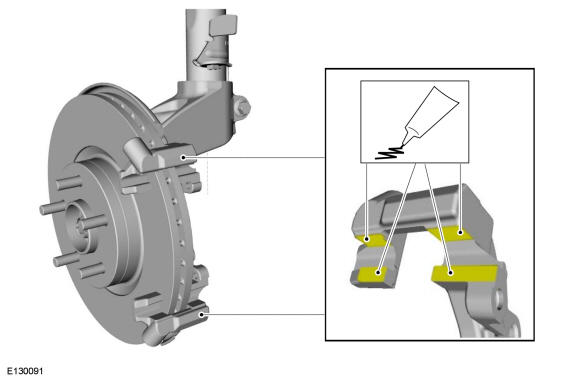

  1. Apply the specified grease to the brake caliper anchor plate as shown in illustration.

    Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    GFD570046Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
