Front Door Window Glass: Removal

NOTE: LH side shown, RH side similar.
  1. Remove the front door latch. Refer to: Front Door Latch .
  2. Remove the front door window control switch. Refer to: Front Door Window Control Switch .
  3. Connect the front door window control switch.
    GFD574112Courtesy of FORD MOTOR COMPANY
  4. Lower the front door window glass to the position indicated.
    GFD574113Courtesy of FORD MOTOR COMPANY

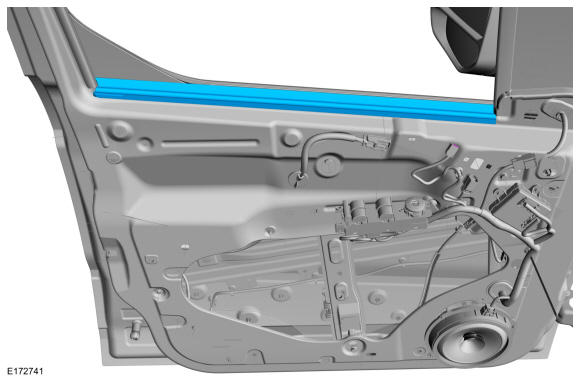

  5. Remove the front door inner belt molding.
    GFD574114Courtesy of FORD MOTOR COMPANY

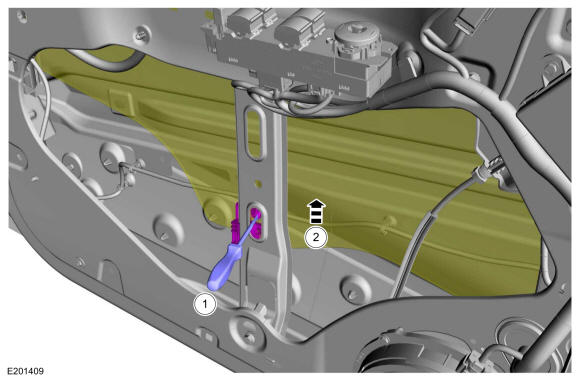

  6. Release the retaining clip from the front door window glass.

    1. Release the retaining clip from the front door window glass. Use the General Equipment: Flat Headed Screw Driver
    2. Raise the front door window glass.

    GFD574115Courtesy of FORD MOTOR COMPANY

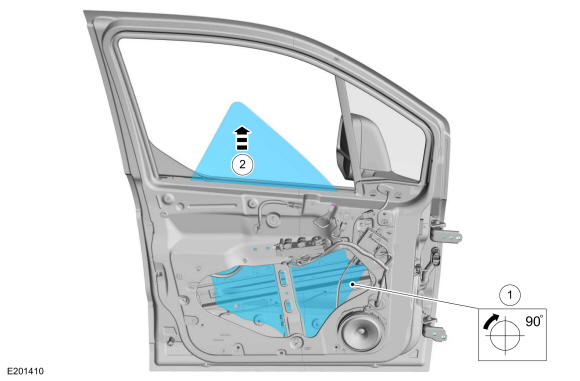

  7. NOTE: LH side shown, the RH side should be rotated counter-clockwise.

    Remove the front door window glass.

    1. Rotate the front door window glass 90 degrees clockwise.
    2. Remove the front door window glass.

GFD574116Courtesy of FORD MOTOR COMPANY
