Front Door Glass Top Run: Removal

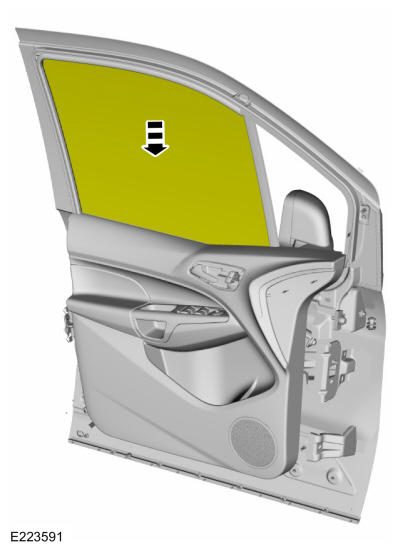

  1. Lower the front door window glass to the position indicated.
    GFD574138Courtesy of FORD MOTOR COMPANY
  2. Remove the exterior rear view mirror. Refer to: EXTERIOR MIRROR .

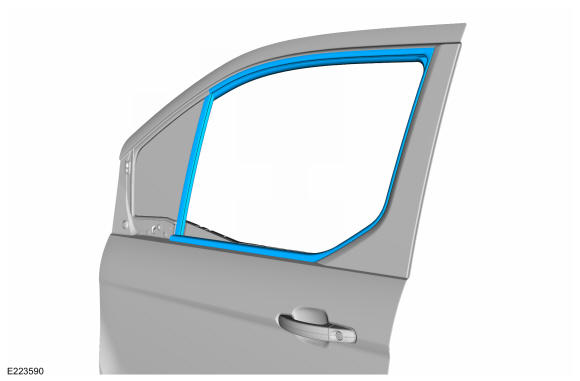

  3. Remove the front door glass top run.
GFD574139Courtesy of FORD MOTOR COMPANY
