Front Door Fixed Window Glass: Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front door window glass. Refer to: Front Door Window Glass .

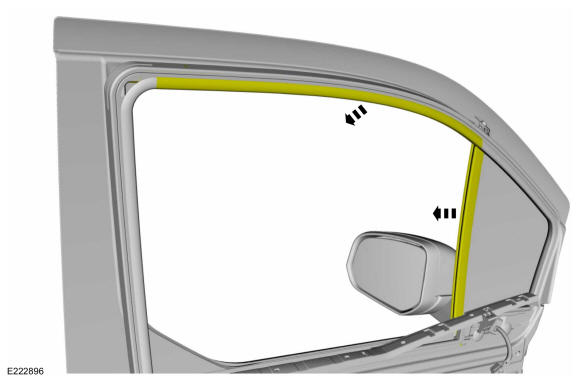

Position aside the front door glass top run.

Courtesy of FORD MOTOR COMPANY

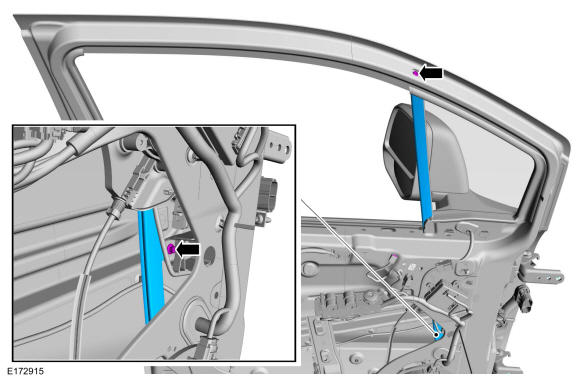

Remove the retainers and the fore front door window glass run.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

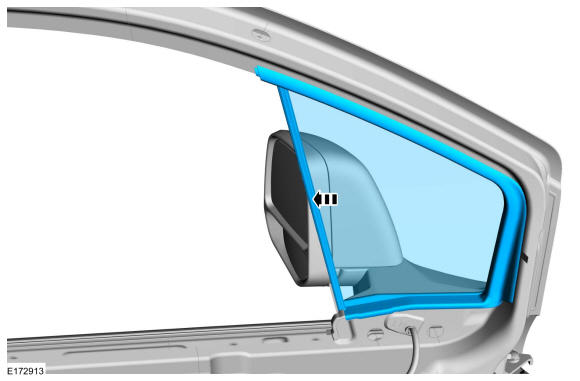

Remove the front door fixed window glass.

Courtesy of FORD MOTOR COMPANY
