Third Row Seat: Removal
WARNING:
The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.

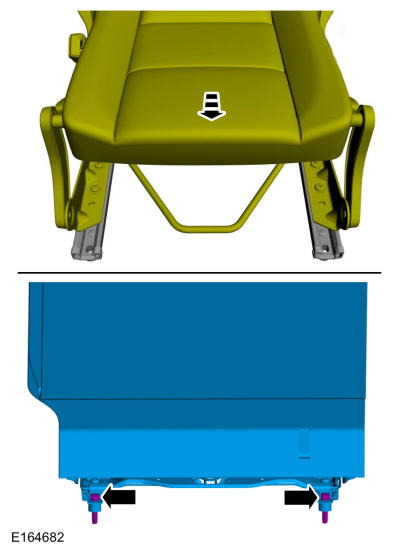

- Remove the front bolts.
Torque
: 30 lb.ft (40 Nm)
- Position the seat forward to access the rear bolts. Remove the rear bolts and the seat.
Torque
: 30 lb.ft (40 Nm)
