Third Row Seat Head Restraint Guide Sleeve: Removal

NOTE: Removal steps in this procedure may contain installation details.

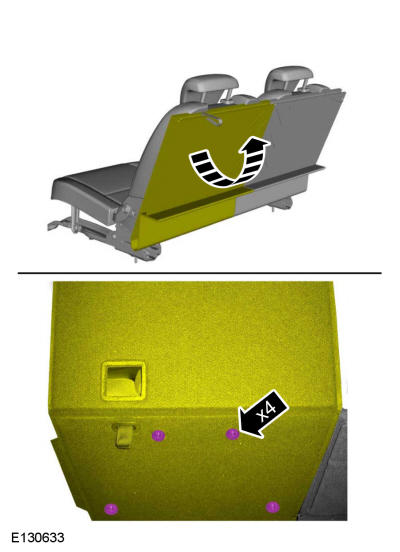

Invert the seat backrest trim cover. Release the retainers and position aside the seat backrest trim cover.
Torque

: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
1. Release the locking tab.
2. Remove the head restraint.
Courtesy of FORD MOTOR COMPANY

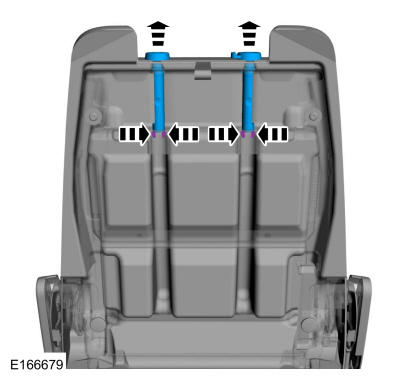

Release the locking tabs and remove the headrest restraint guide sleeves.

Courtesy of FORD MOTOR COMPANY
