Third Row Seat Cushion Cover: Removal
WARNING:
The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the third row seat. Refer to: Third Row Seat .

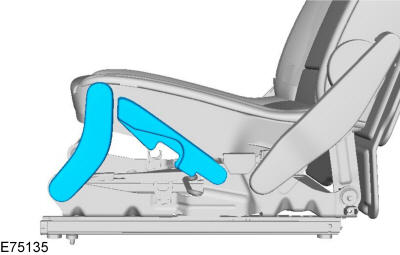

- On both sides. Remove the rear seat hinge support covers.

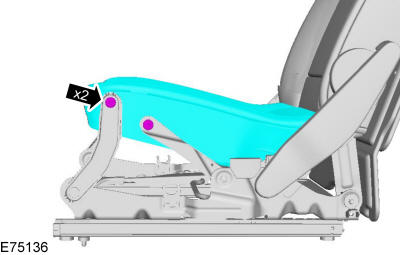

- On both sides. Remove the bolts and the seat cushion cover assembly.
Torque
: 18 lb.ft (25 Nm)

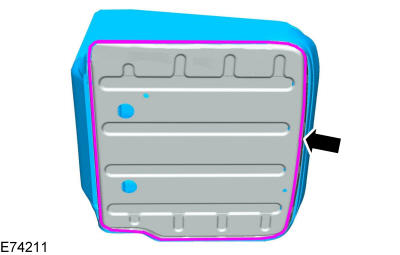

- Detach the lower J-clip from the seat cushion cover.

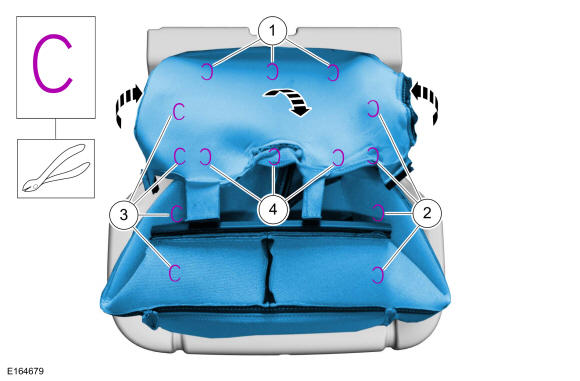

- Remove the hog rings and the cushion cover.
