Second Row Single Seat Cushion Cover: Removal
NOTE:
Short wheelbase shown in illustration, long wheelbase similar.
NOTE:
Removal steps in this procedure may contain installation details.
Long wheelbase
- Remove the second row single seat. Refer to: Second Row Single Seat
.
Short wheelbase

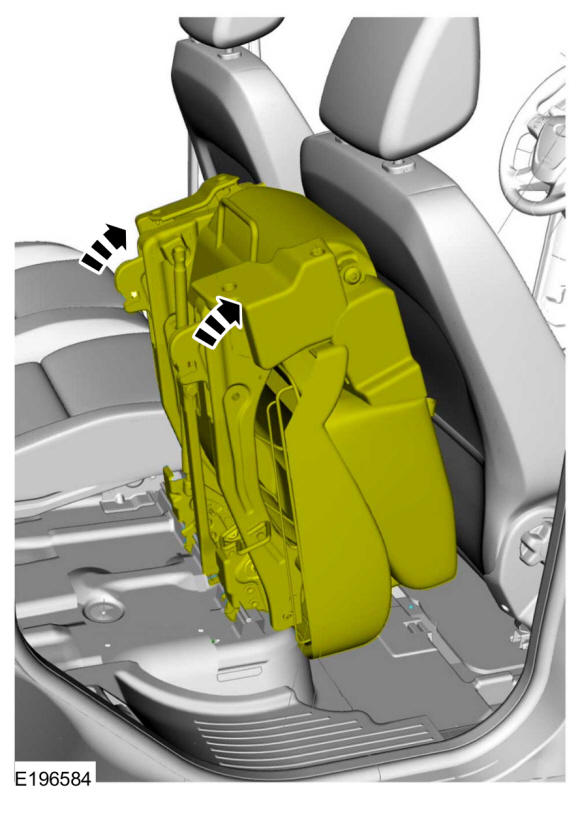

- Fold the seat forward.
All vehicles

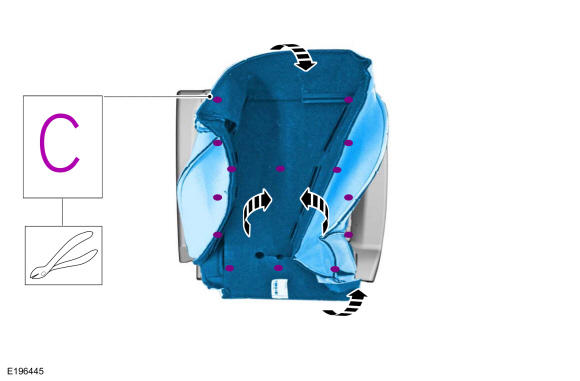

- Release the J-clips and release the cushion cover from the seat frame.
- Using side cutters, remove the hog rings. Remove the second row seat cushion cover from the foam pad.
