Second Row Double Seat Cushion Cover: Removal

NOTE: Short wheelbase shown in illustration, long wheelbase similar.

NOTE: Removal steps in this procedure may contain installation details.

Long wheelbase

Remove the second row double seat. Refer to: Second Row Double Seat .
Short wheelbase
Fold the seat forward.

Courtesy of FORD MOTOR COMPANY

All seats

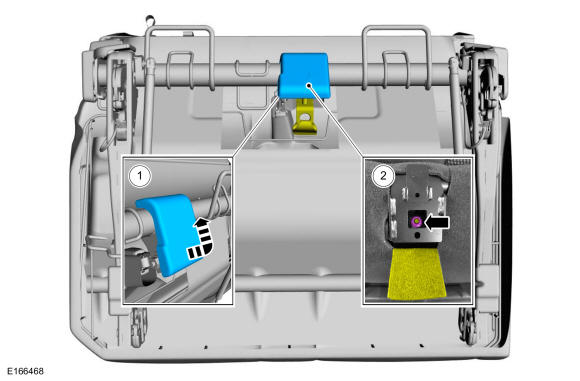

1. Remove the safety belt anchor nut cover.
2. Remove the safety belt anchor nut and position the safety belt aside.
  Torque

  : 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

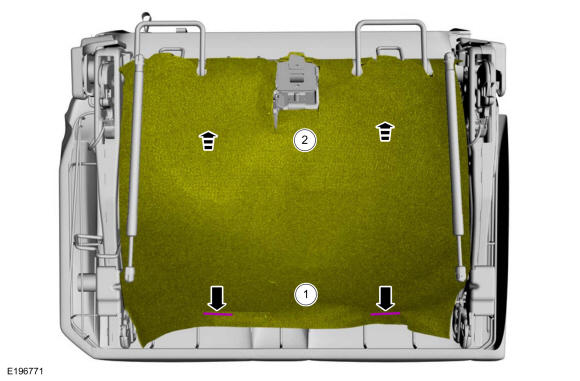

Release the J-clips and release the cushion cover from the seat frame.

Courtesy of FORD MOTOR COMPANY
Release the cushion cover J-clips.

Courtesy of FORD MOTOR COMPANY

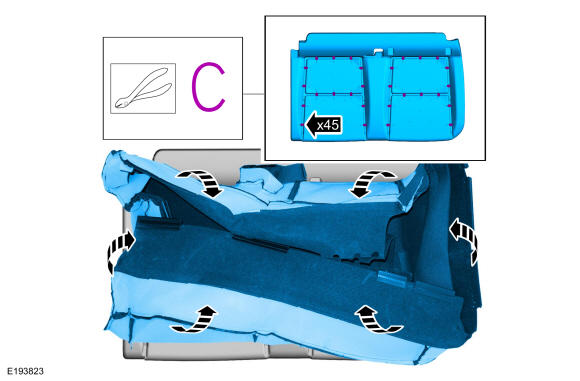

Using side cutters, remove the hog rings and the cushion cover.

Courtesy of FORD MOTOR COMPANY
