Second Row Double Seat Backrest Cover: Removal

NOTE: Short wheelbase shown in illustration, long wheelbase similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the second row double seat head restraint guide sleeve. Refer to: Second Row Seat Head Restraint Guide Sleeve .
1. Remove the safety belt anchor nut cover.
2. Remove the safety belt anchor nut and position the safety belt aside.
  Torque

  : 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

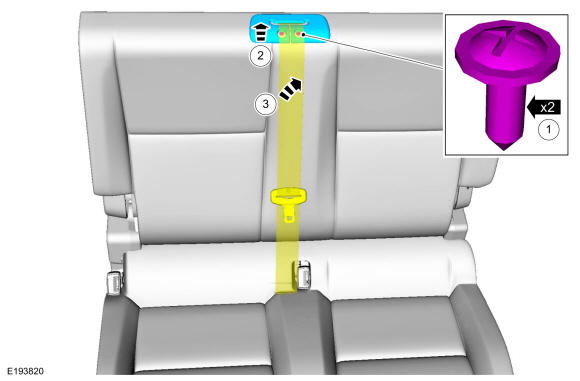

Remove the safety belt bezel and position the safety belt aside.
1. Remove the bezel retainers.
  Torque

  : 27 lb.in (3 Nm)
2. Remove the bezel.
3. Position the safety belt aside.
Courtesy of FORD MOTOR COMPANY

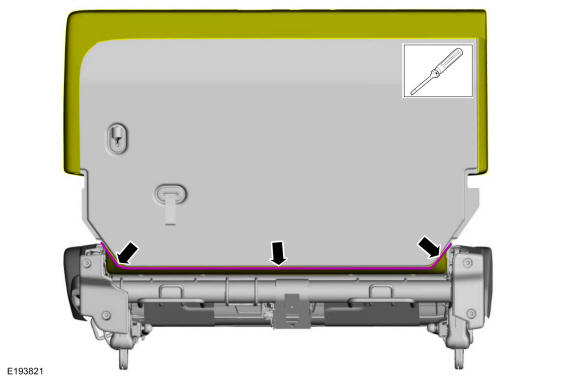

Release the backrest lower J-clips.
Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
If equipped, remove the second row seat armrest. Refer to: Second Row Double Seat Armrest .

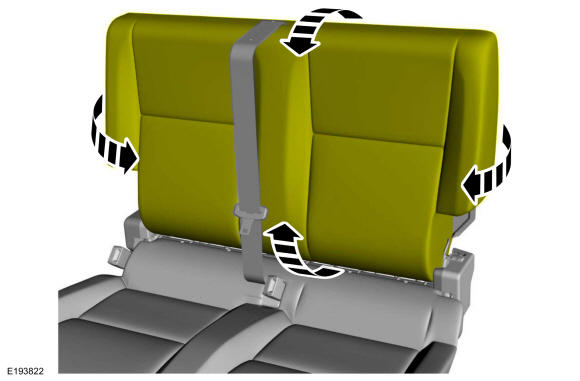

Position the seat belt aside and invert the second row double seat backrest cover.

Courtesy of FORD MOTOR COMPANY

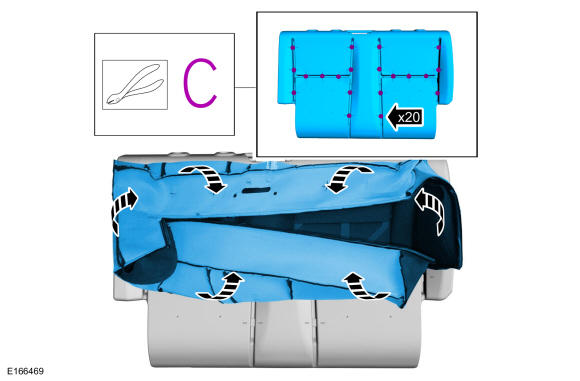

Using side cutters, remove the hog rings from the foam pad, and remove the cover.

Courtesy of FORD MOTOR COMPANY
