Second Row Double Seat Armrest: Removal

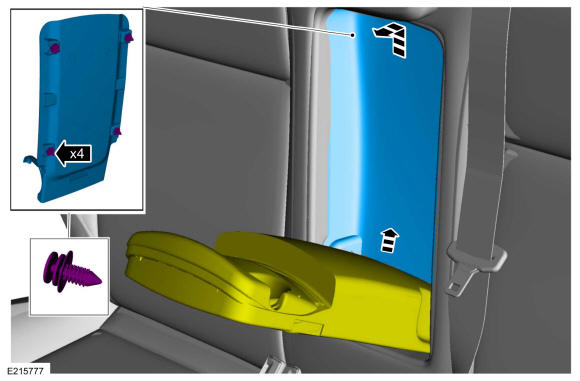

  1. Release the pin-type retainers and remove the armrest back panel.
    GFD574068Courtesy of FORD MOTOR COMPANY

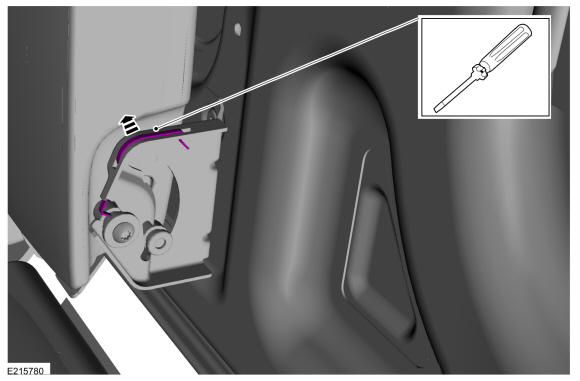

  2. NOTE: The rear seat backrest cover has been removed for clarity.

    On both sides. Remove the armrest locking clip.

    GFD574069Courtesy of FORD MOTOR COMPANY

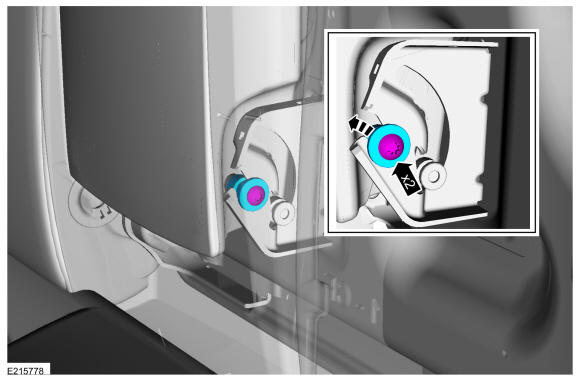

  3. On both sides. Remove the armrest fasteners.
    GFD574070Courtesy of FORD MOTOR COMPANY

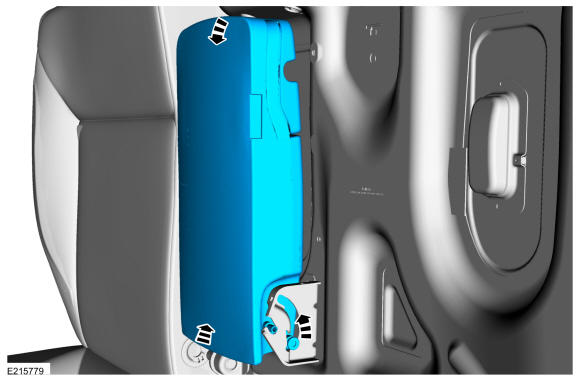

  4. NOTE: The rear seat backrest cover has been removed for clarity.

    Lift and rotate the armrest to release it from the armrest hinges. Remove the armrest.

GFD574071Courtesy of FORD MOTOR COMPANY
