Passenger Seat Backrest Cover - Vehicles With: Fold Flat Seat: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the seat. Refer to: Front Seat .
NOTE: Typical head restraint guide sleeve shown in illustration, others similar.

Depress the locking tabs and remove the head restraint.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this in installation.

NOTE: Seat backrest cover removed for clarity.

Remove the head restraint guide sleeves.

Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
Discard the head restraint guide sleeves.

Courtesy of FORD MOTOR COMPANY
Remove the backrest recline handle.
1. Remove the fastener cover.
2. Remove the bolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

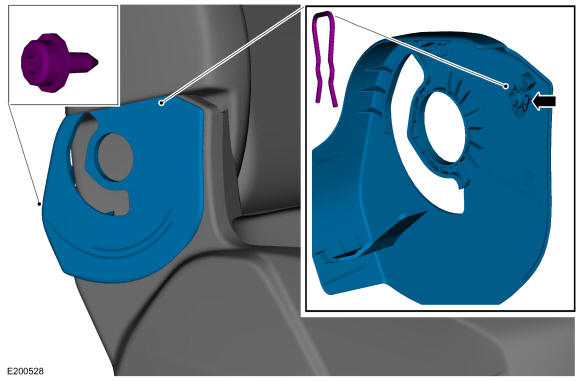

Remove the screw and U-clip. Remove the outboard upper side shield.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

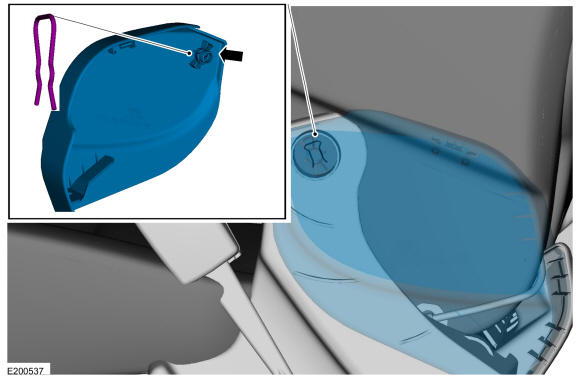

Remove the screws and remove the outboard lower side shield.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the U-clip and remove the inboard upper side shield.

Courtesy of FORD MOTOR COMPANY

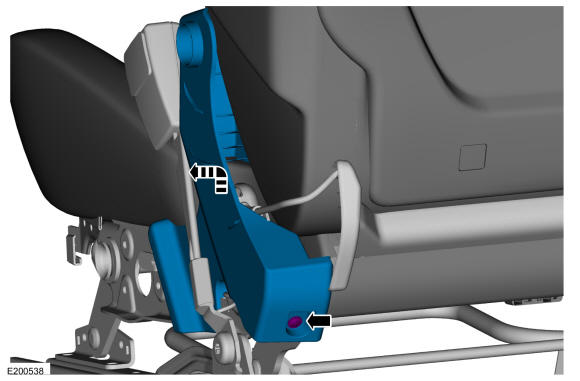

Remove the screw and remove the inboard lower side shield.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

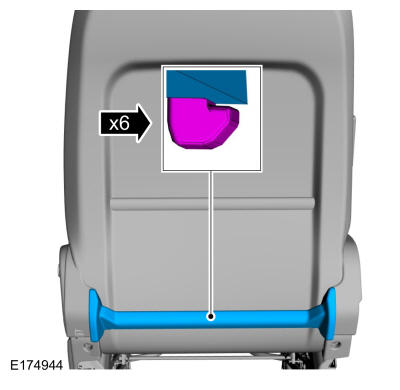

Release the locking clips and remove the backrest lower trim.

Courtesy of FORD MOTOR COMPANY

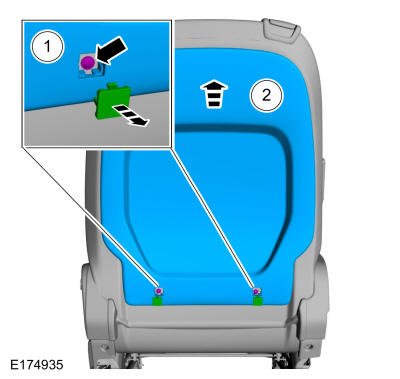

Remove the seat back panel.
1. Remove the covers and screws.
  Torque: 27 lb.in (3 Nm)
2. Slide the panel upward.
Courtesy of FORD MOTOR COMPANY
Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
Partially invert the backrest cover and release it from the backrest foam.

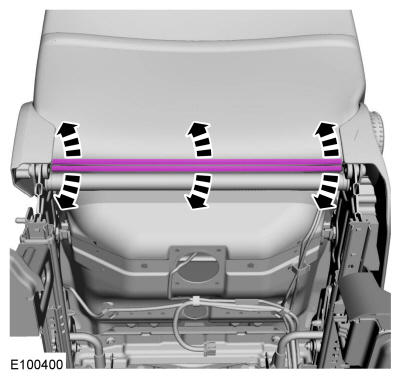

1. Press the backrest cover support wire inward.
2. Rotate the backrest cover support wire downward and release it from backrest foam.
Courtesy of FORD MOTOR COMPANY

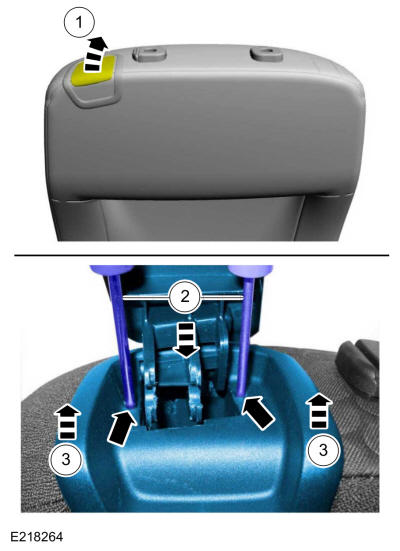

Remove the backrest fold flat handle assembly.
1. Lift the fold flat release handle.
2. Insert the screwdrivers into the fold flat handle bezel openings to release the locking tabs. Use the General Equipment: Flat Headed Screw Driver
3. Lift and remove the handle assembly.
Courtesy of FORD MOTOR COMPANY

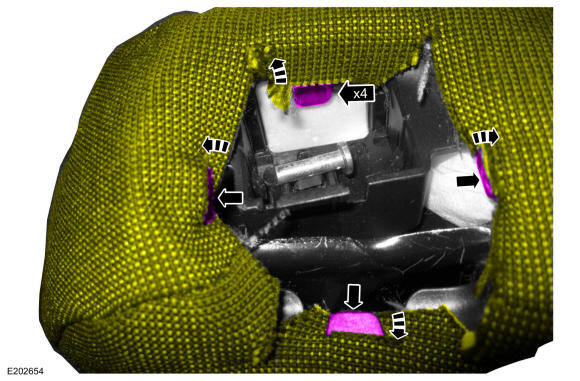

Release the backrest cover from the fold flat mechanism tabs.

Courtesy of FORD MOTOR COMPANY
Remove the backrest cover.
1. NOTE: Follow the unique instruction or graphics for this step in installation.

  Remove the hog rings.
2. Push upward and rotate the backrest cover support wire and release it from the backrest foam.
