Front Seat Armrest: Removal

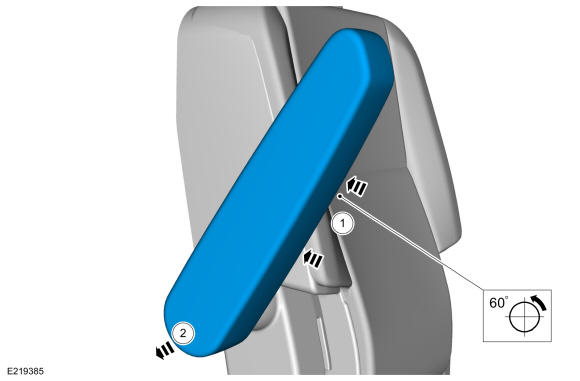

  1. NOTE: LH armrest shown in illustration, RH similar.

    Remove the armrest.

    1. Position the armrest to an approximate 60 degree angle.
    2. Pull the armrest outward to release.

GFD573979Courtesy of FORD MOTOR COMPANY
