Front Head Restraint Guide Sleeve: Removal

  1. Release the locking tabs and remove the head restraint.
    GFD573982Courtesy of FORD MOTOR COMPANY

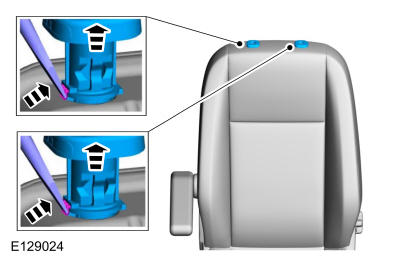

  2. Using flat headed screw driver, release the locking tabs and remove the headrest restraint guide sleeves.
GFD573983Courtesy of FORD MOTOR COMPANY
