Panoramic Roof Panel Blind Initialization
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Activation
WARNING:
The anti-trap function will not operate during the initialization procedure.
NOTE:
The relearning process must be started no later than 30 seconds after turning the ignition ON.
NOTE:
If Step 3 is not completed within 15 seconds of Step 1, the relearning function will be interrupted. Turn the ignition OFF, wait for another 30 seconds and then turn the ignition back ON again. Start the procedure once more from the beginning.

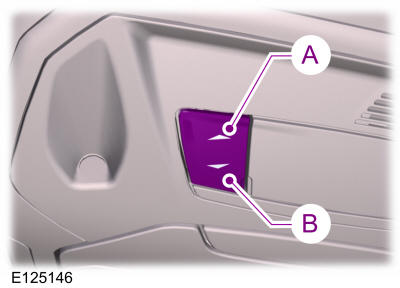

- Press switch B to the first action point twice and release it within two seconds.
- Press switch A to the first action point twice and release it within two seconds.
- Press and hold switch B to the first action point, until the blind fully opens.
- Press and hold switch A to the first action point, until the blind fully closes.
- Confirm that relearning has been completed by using automatic opening and closing.
