Removal And Installation: Hood: Removal

NOTE: Removal steps in this procedure may contain installation details.

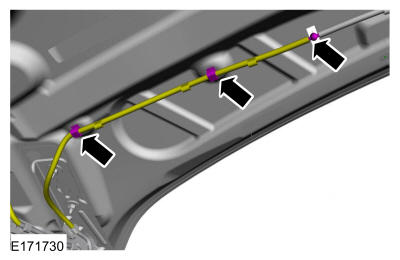

  1. Detach the windshield washer hose retainers and coupling.
    GFD573523Courtesy of FORD MOTOR COMPANY

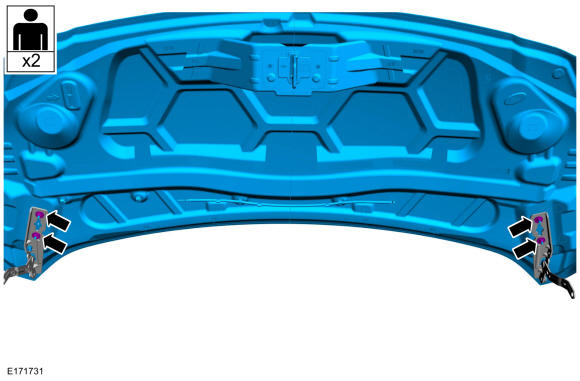

  2. Remove the nuts and the hood.

    Torque

    : 97 lb.in (11 Nm)

GFD573524Courtesy of FORD MOTOR COMPANY
