Removal And Installation: Fender: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the side turn signal lamp. Refer to: Side Turn Signal Lamp .
2. Remove the headlamp assembly. Refer to: Headlamp Assembly .
3. Remove the fender splash shield. Refer to: Fender Splash Shield .

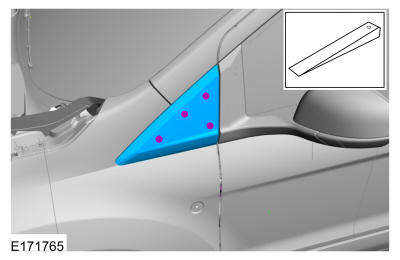

4. Remove the retainers and the door frame molding.

   Courtesy of FORD MOTOR COMPANY

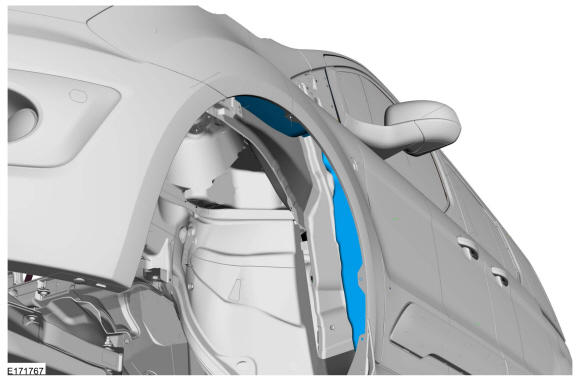

5. Remove the sound insulations.

   Courtesy of FORD MOTOR COMPANY

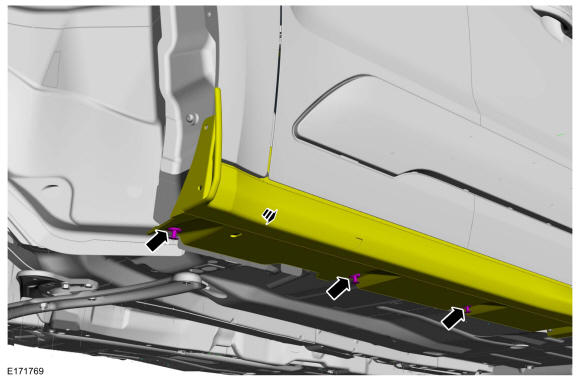

6. Remove the retainers and position the rocker panel molding aside.

   Courtesy of FORD MOTOR COMPANY

7. Remove lower rear fender bracket bolts.

   Courtesy of FORD MOTOR COMPANY

8. Remove the upper A-pillar bolt.

   Courtesy of FORD MOTOR COMPANY

9. Remove the lower A-pillar bolt.

   Courtesy of FORD MOTOR COMPANY

10. Remove the fender-to-bumper cover bolts.

    Courtesy of FORD MOTOR COMPANY

11. 1. Separate the front bumper cover from the fender.
    2. Remove the front fender bracket bolt.

    Courtesy of FORD MOTOR COMPANY

12. Remove the bolts and the fender.

Courtesy of FORD MOTOR COMPANY
