Removal And Installation: Fender: Installation

  1. NOTE: Only tighten the bolts finger tight at this stage.

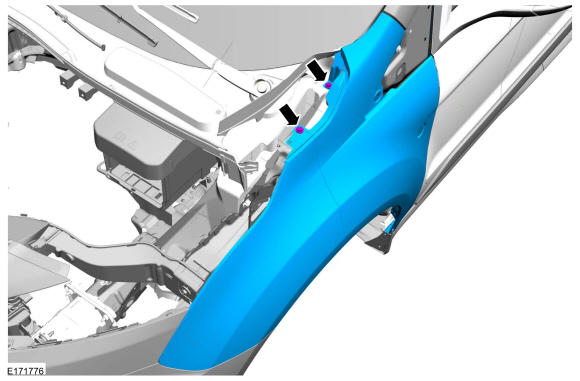

    Position the fender on the vehicle and loosely install the bolts.

    GFD573522Courtesy of FORD MOTOR COMPANY
  2. NOTE: Only tighten the bolt finger tight at this stage.

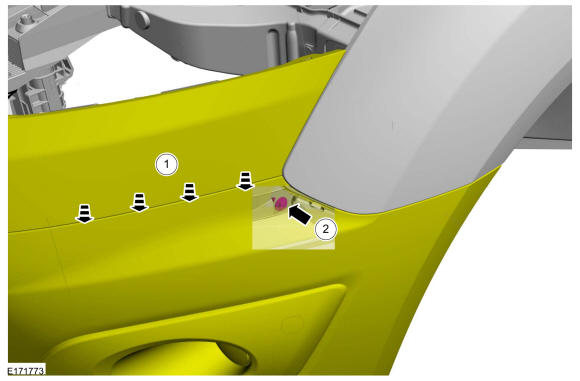

    1. Separate the front bumper cover from the fender.
    2. Loosely install front fender bracket bolt.

    GFD573521Courtesy of FORD MOTOR COMPANY
  3. NOTE: Only tighten the bolts finger tight at this stage.

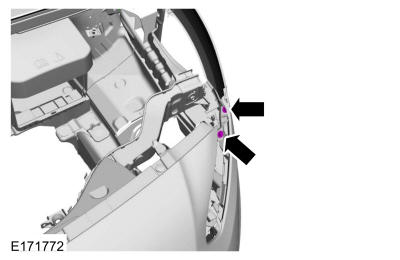

    Loosely install the fender-to-bumper cover bolts.

    GFD573520Courtesy of FORD MOTOR COMPANY
  4. NOTE: Only tighten the bolt finger tight at this stage.

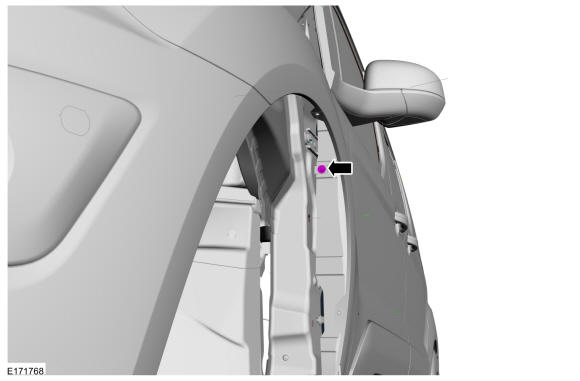

    Loosely install the lower A-pillar bolt.

    GFD573519Courtesy of FORD MOTOR COMPANY
  5. NOTE: Only tighten the bolt finger tight at this stage.

    Loosely install the upper A-pillar bolt.

    GFD573518Courtesy of FORD MOTOR COMPANY
  6. NOTE: Only tighten the bolts finger tight at this stage.

    Loosely install the lower rear fender bolts.

    GFD573517Courtesy of FORD MOTOR COMPANY
  7. Adjust the fender to specification.
  8. Tighten all fender fasteners.

    Torque

    : 53 lb.in (6 Nm)

  9. To install, reverse the removal procedure.
