Fender Splash Shield: Removal

  1. Remove the front wheel and tire. Refer to: Wheel and Tire .

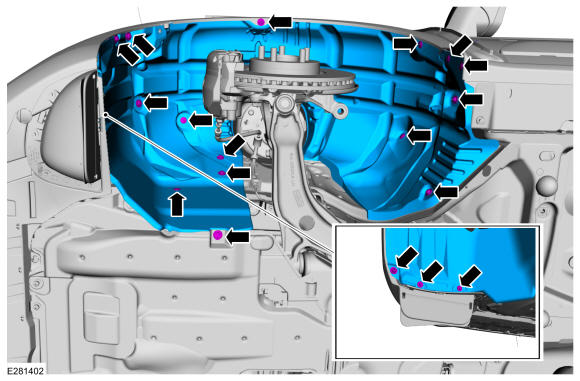

  2. Remove the screws, retainers and the fender splash shield.
GFD573510Courtesy of FORD MOTOR COMPANY
