Cowl Panel Grille: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the windshield wiper pivot arm. Refer to: WINDSHIELD WIPER PIVOT ARM .
-

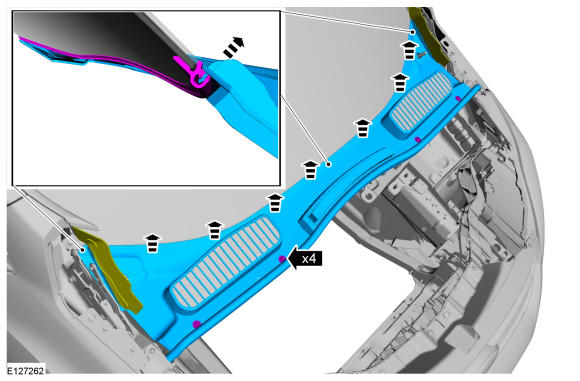

- Remove the screws and release the clips and pull out the cowl panel grille.
Torque
: 22 lb.in (2.5 Nm)
- Lift the cowl panel grille up and remove.
- Remove the screws and release the clips and pull out the cowl panel grille.
