Active Grille Shutter: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .

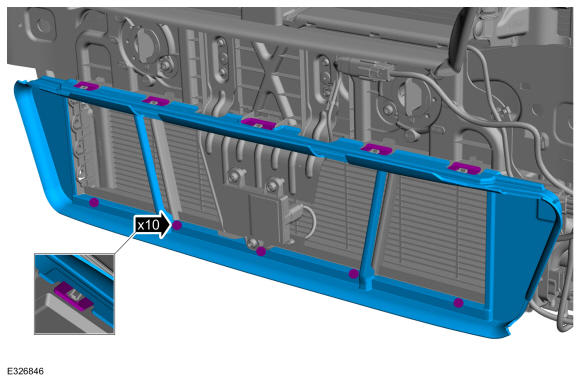

Release the clips and remove the bottom air deflector.

Courtesy of FORD MOTOR COMPANY

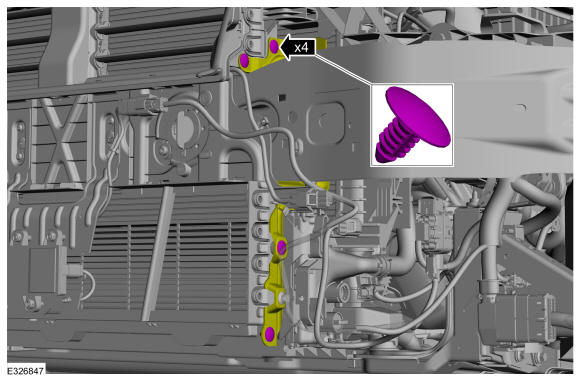

On both sides Remove the pin-type retainers and position aside the radiator air deflector.

Courtesy of FORD MOTOR COMPANY

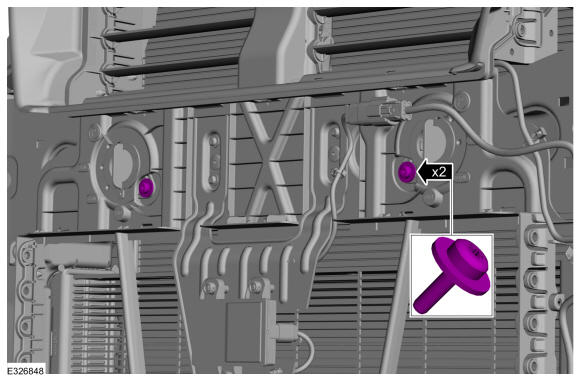

Remove the pin-type retainers and position aside the radiator air deflector.
Torque

: 10 lb.in (1.1 Nm)

Courtesy of FORD MOTOR COMPANY

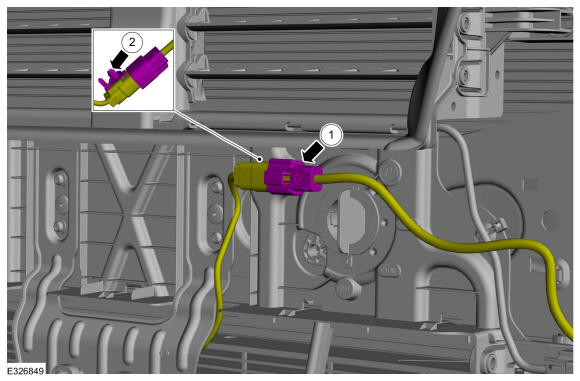

1. Disconnect the electrical connector.
2. Remove the pin type retainers and position aside the wiring harness.
Courtesy of FORD MOTOR COMPANY

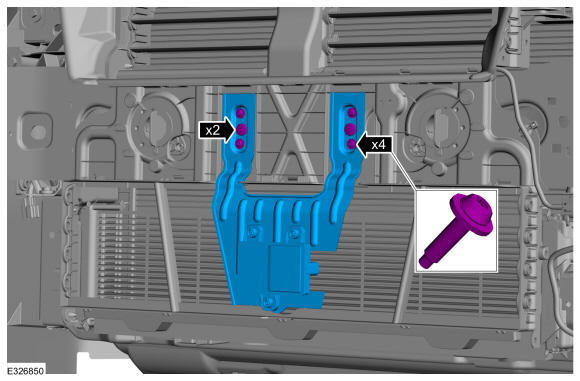

Remove the fasteners and the CCM bracket.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

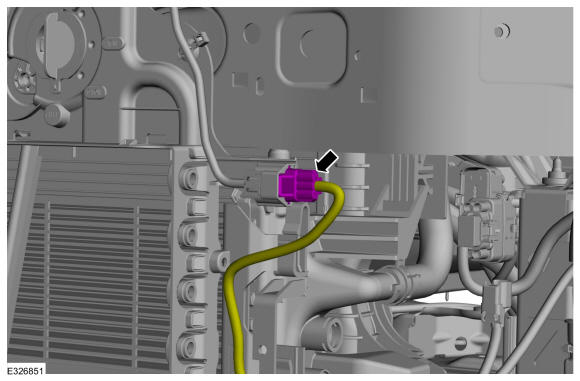

Disconnect the active grille shutter electrical connector.

Courtesy of FORD MOTOR COMPANY

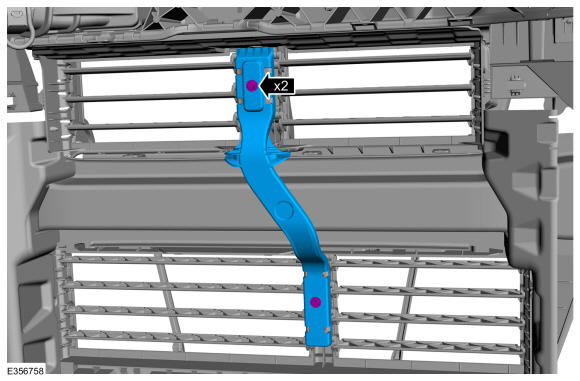

Remove the bolts and the connecting link.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

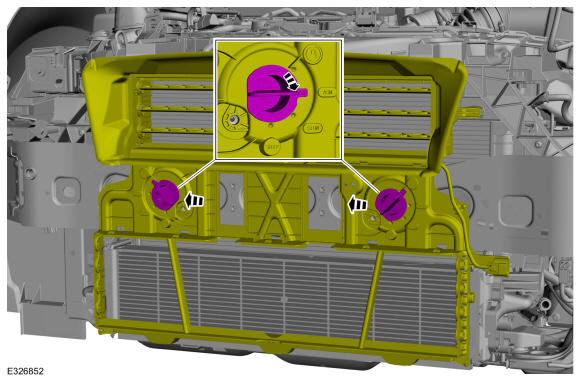

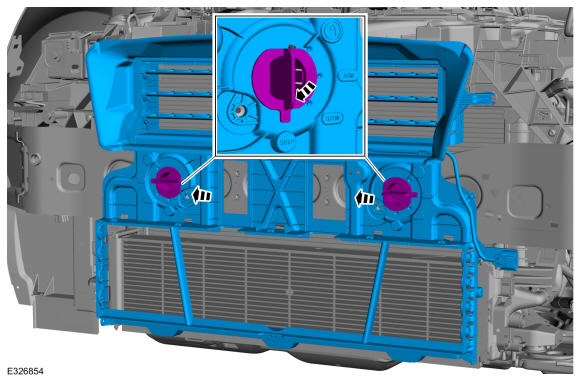

Rotate the stow knobs from the LOCK position to the ASSEMBLE position and position the active grille shutter forward.

Courtesy of FORD MOTOR COMPANY

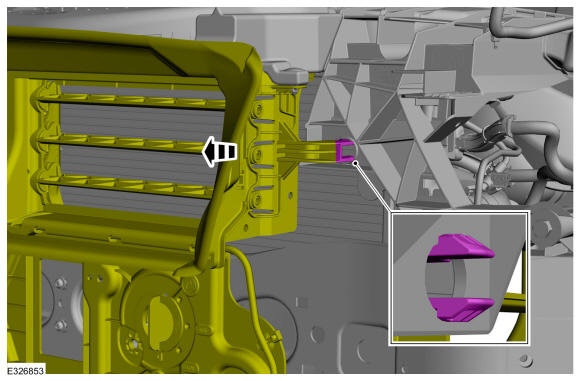

On both sides. Release the retaining tab and position the active grille shutter forward.

Courtesy of FORD MOTOR COMPANY
On both sides. Rotate the stow knobs from the ASSEMBLE position to the SHIP position and remove the active grille shutter assembly.

Courtesy of FORD MOTOR COMPANY
