Front Bumper: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

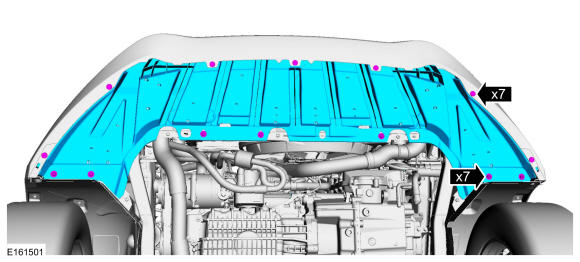

Remove the screws and the engine undershield.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

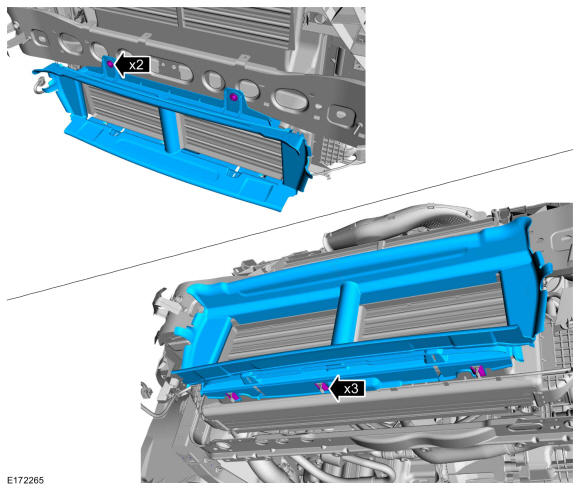

Remove the screws, the pin-type retainers and the radiator deflector.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the front bumper cover. Refer to: Front Bumper Cover .

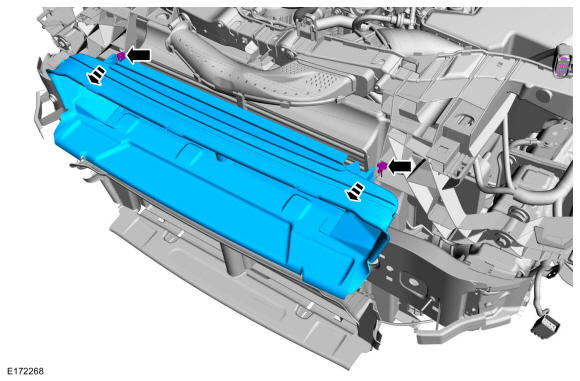

Release the clips, detach the retainers and remove the upper air deflector.

Courtesy of FORD MOTOR COMPANY
Detach the retainers, release the clips and remove the lower air deflector.

Courtesy of FORD MOTOR COMPANY

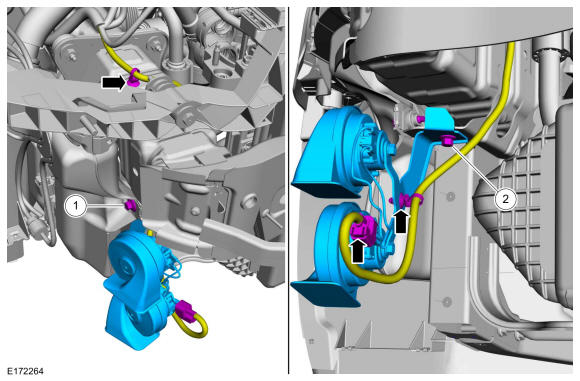

Disconnect the electrical connector, detach the pin-type retainers, remove the bolt and the horn.
Use the General Equipment: Interior Trim Remover

Torque: 1: 71 lb.in (8 Nm)

2: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

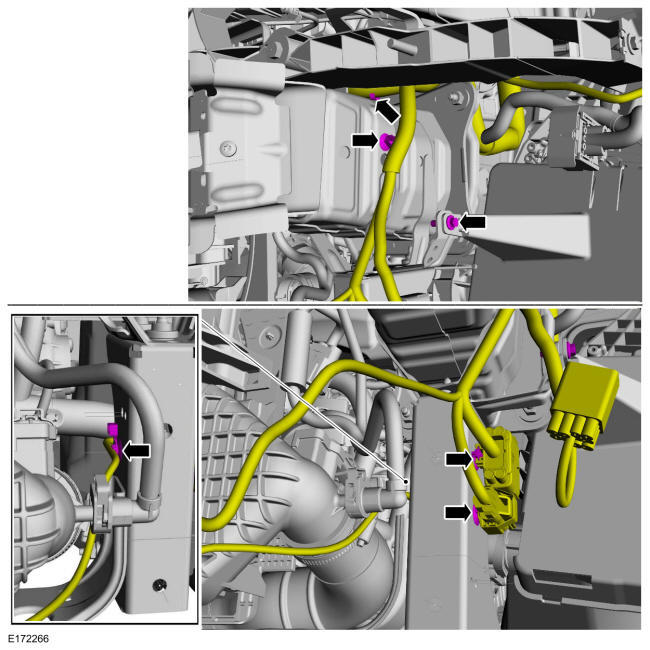

Remove the bolt, detach the retainers and position the wiring harness aside.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

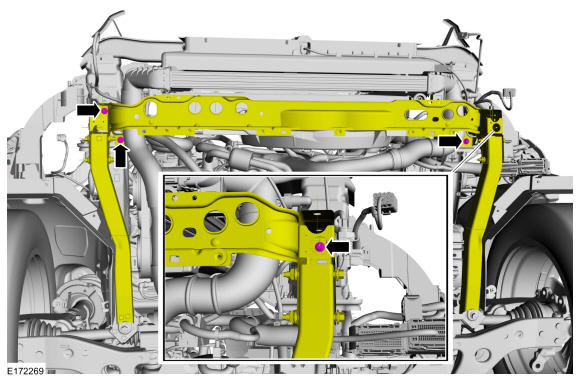

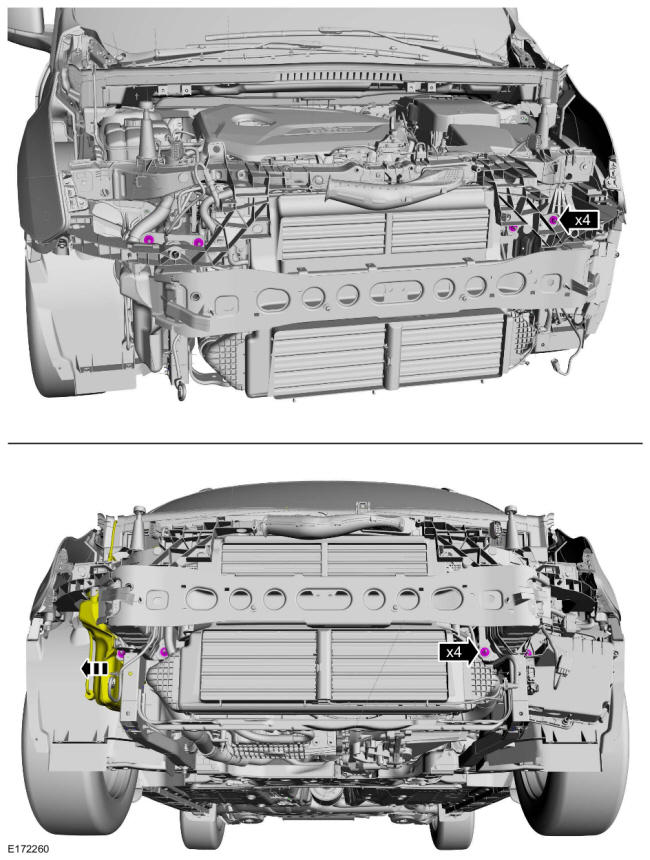

Remove the front subframe bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
1. Remove the front bumper nuts.
  Torque: 18 lb.ft (25 Nm)
2. Position aside the windshield washer reservoir.
Courtesy of FORD MOTOR COMPANY

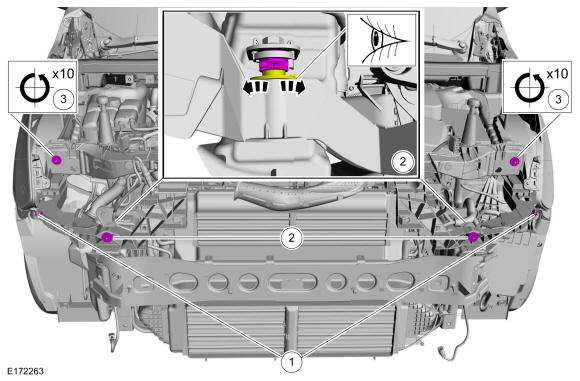

1. Remove the bolts.
  Torque: 53 lb.in (6 Nm)
2. Tighten each bolt 0.5 turn at a time, until the components are in full contact, before final tightening.
  Torque: 17 lb.ft (23 Nm)
3. Loosen the radiator grille opening panel bolts.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY

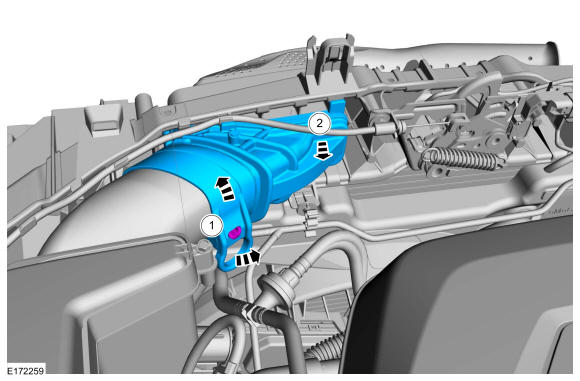

1. Release the tab.
2. Remove the rear air cleaner inlet pipe.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no components catch.

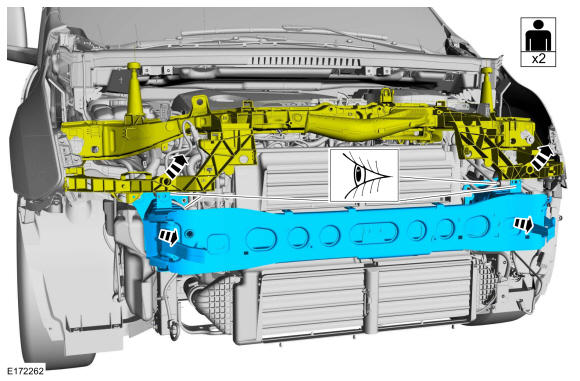

Position the upper radiator support upward and remove the front bumper.
