Rear Bumper Cover: Disassembly

  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

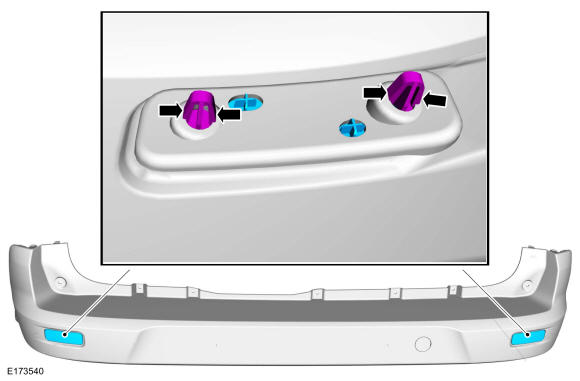

  2. Remove the rear bumper reflectors.
    GFD574391Courtesy of FORD MOTOR COMPANY

    Vehicles with rear parking aid

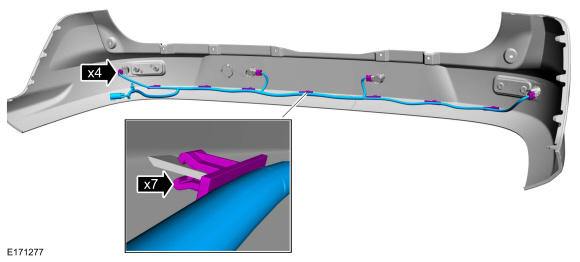

  3. Disconnect the park aid sensors and remove the rear bumper cover wiring harness.
    GFD574392Courtesy of FORD MOTOR COMPANY

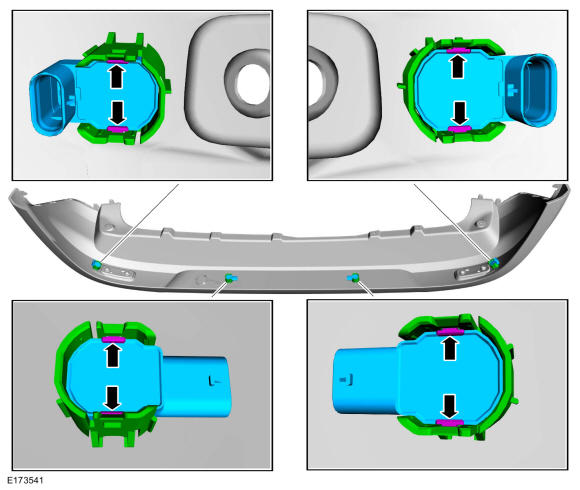

  4. NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

    Remove the rear park aid sensors.

GFD574393Courtesy of FORD MOTOR COMPANY
