Front Bumper Cover: Disassembly

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. If equipped.
  3. If equipped.

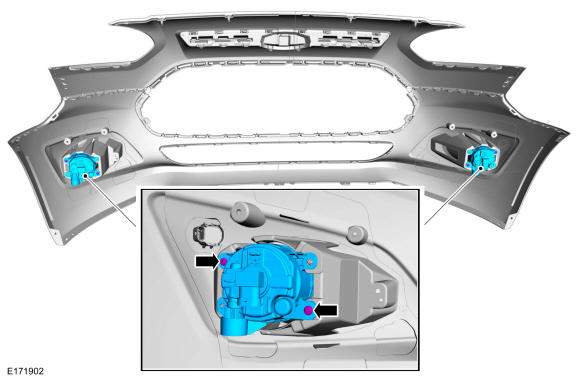

  4. If equipped. Remove the screws and the front fog lamps.
    GFD574385Courtesy of FORD MOTOR COMPANY

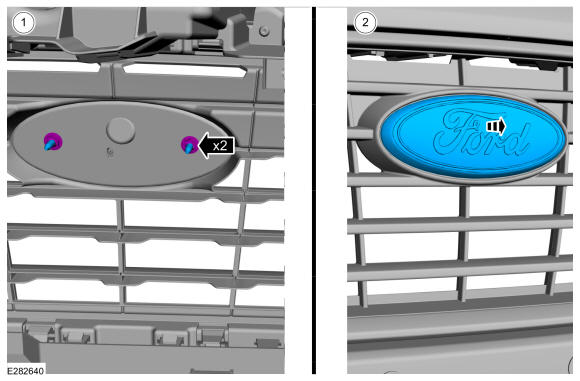

  5. Remove the nuts and the badge.
    GFD574386Courtesy of FORD MOTOR COMPANY

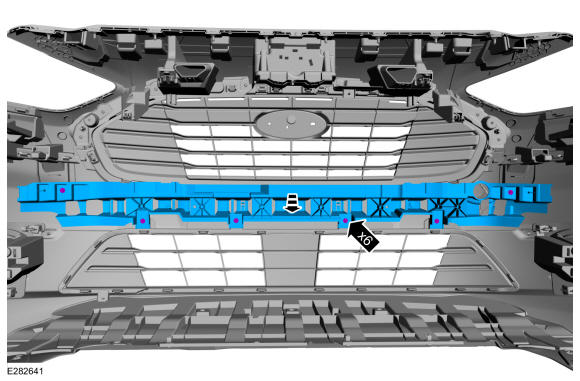

  6. Remove the screws and the reinforcement.
    GFD574387Courtesy of FORD MOTOR COMPANY

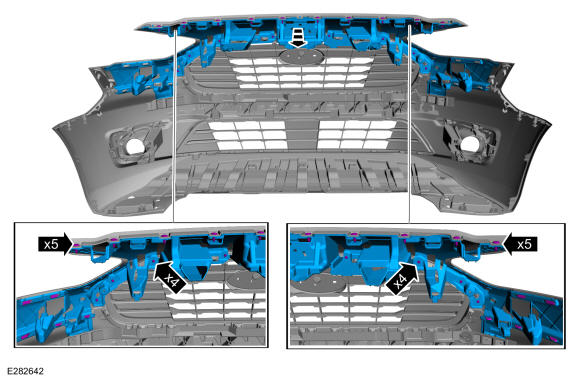

  7. Remove the 10 retainers, the 8 bolts and the reinforcement.
    GFD574388Courtesy of FORD MOTOR COMPANY

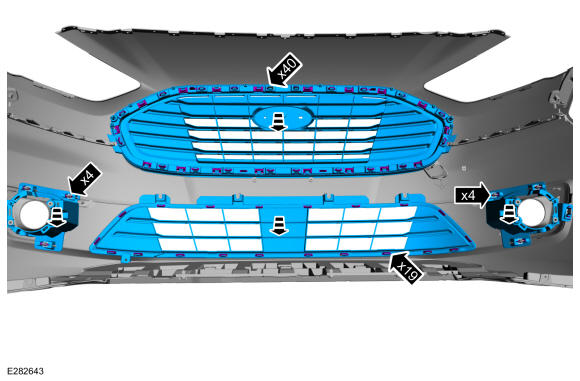

  8. Release the retainers and remove the components.
    GFD574389Courtesy of FORD MOTOR COMPANY

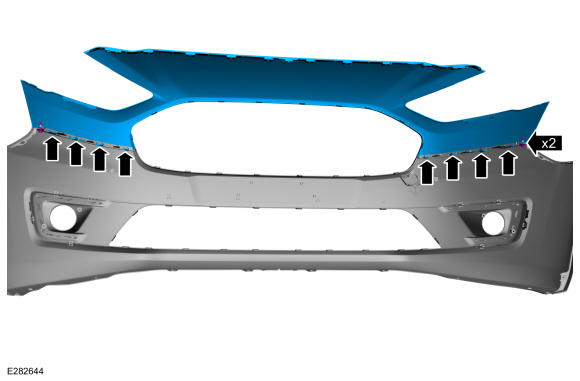

  9. Remove the bolts, release the retainers and split the bumper cover.
GFD574390Courtesy of FORD MOTOR COMPANY
