Removal And Installation: Liftgate: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the liftgate trim panel. Refer to: LIFTGATE TRIM PANEL .

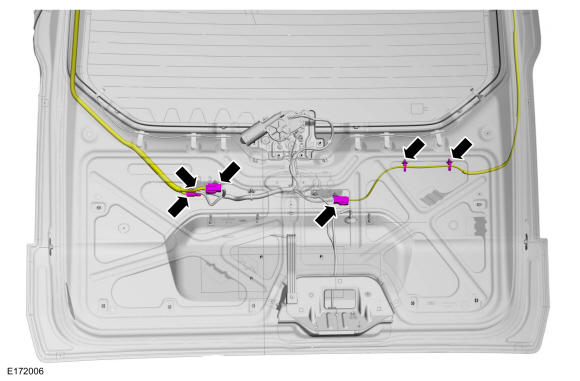

Disconnect the electrical connectors and detach the retainers.

Courtesy of FORD MOTOR COMPANY
On both sides.

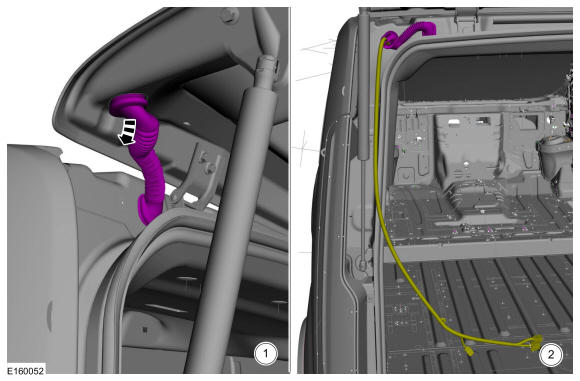

1. Remove the grommet.
2. Route the harness out of the liftgate.
Courtesy of FORD MOTOR COMPANY
NOTE: This step requires the aid of another technician.

On both sides.

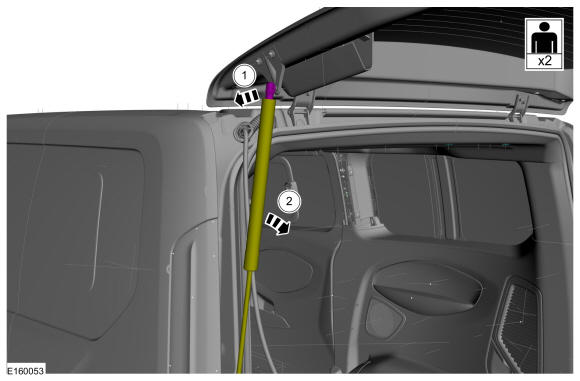

1. Remove the clip.
2. Position aside the liftgate strut.
Courtesy of FORD MOTOR COMPANY
NOTE: This step requires the aid of another technician.

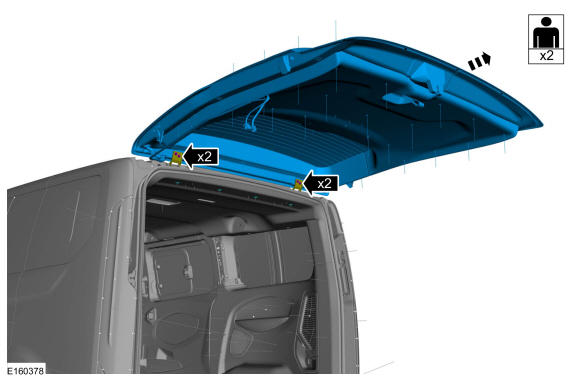

Remove the bolts and the liftgate.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
