Liftgate Hinge: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the liftgate. Refer to: Liftgate  .

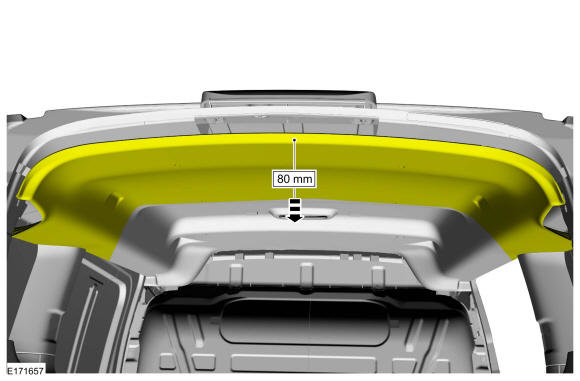

  2. Lower the headliner.
    GFD573627Courtesy of FORD MOTOR COMPANY
  3. Remove the nuts and the liftgate hinges.

    Torque

    : 18 lb.ft (25 Nm)

GFD573628Courtesy of FORD MOTOR COMPANY
