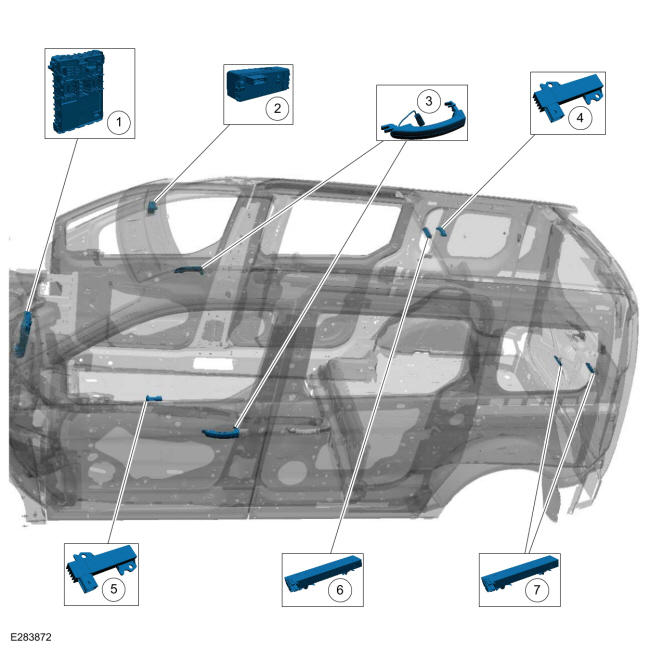

Passive Anti-Theft System (PATS) - Component Location
| Item | Description |
|---|---|
| 1 | BCM |
| 2 | RTM |
| 3 | Keyless entry door antennas |
| 4 | PATS rear antenna (vehicles with panoramic roof or short wheelbase without panoramic roof) |
| 5 | PATS center antenna |
| 6 | PATS rear antenna (vehicles with long wheelbase without panoramic roof or vehicles without a headliner) |
| 7 | Keyless entry rear antenna |
