Liftgate Release Handle: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the liftgate trim panel. Refer to: LIFTGATE TRIM PANEL .

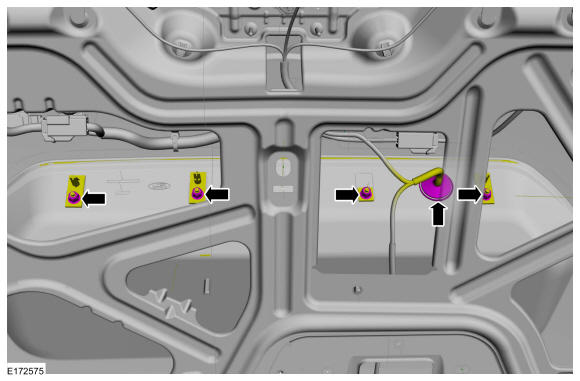

  2. Remove the nuts and detach the wiring harness routing clips.

    Torque: 62 lb.in (7 Nm)

    GFD574285Courtesy of FORD MOTOR COMPANY

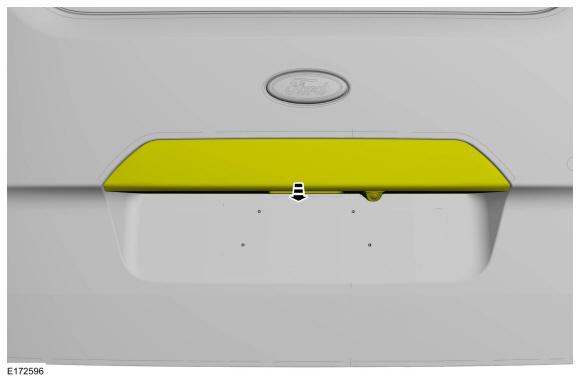

  3. Position the liftgate release handle to gain access to the electrical connectors.
    GFD574286Courtesy of FORD MOTOR COMPANY

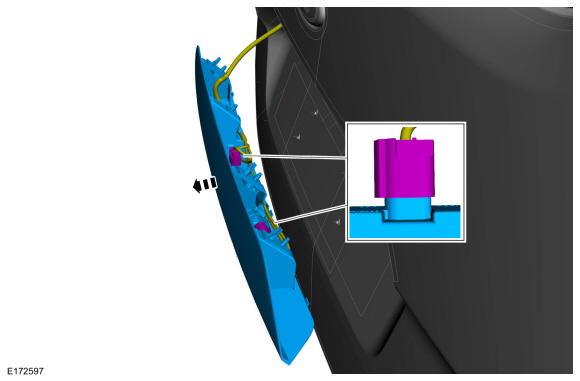

  4. Disconnect the liftgate release handle connectors and remove the liftgate release handle.
GFD574287Courtesy of FORD MOTOR COMPANY
