Keyless Vehicle Center Antenna: Removal

  1. Refer to: Headliner - Long Wheelbase Double Cab in Van/Short Wheelbase Double Cab in Van .

    Refer to Headliner - Bus/Long Wheelbase, Vehicles With: Metal Roof Panel

    Refer to Headliner - Bus/Short Wheelbase, Vehicles With: Metal Roof Panel

    Refer to Headliner - Bus/Short Wheelbase, Vehicles With: Panoramic Roof Panel

  2. NOTE: Note the position of the components before removal.

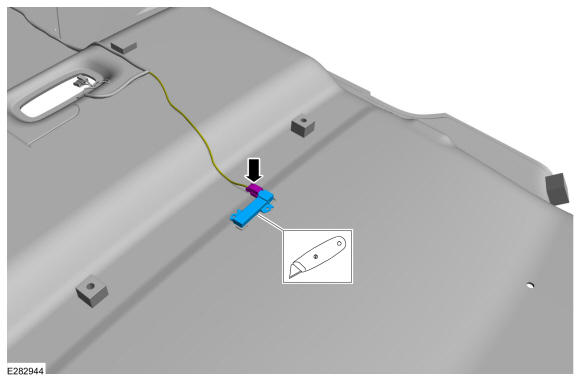

    Remove the Keyless Vehicle Center Antenna.

    GFD574310Courtesy of FORD MOTOR COMPANY

    Cargo/Utility Vans

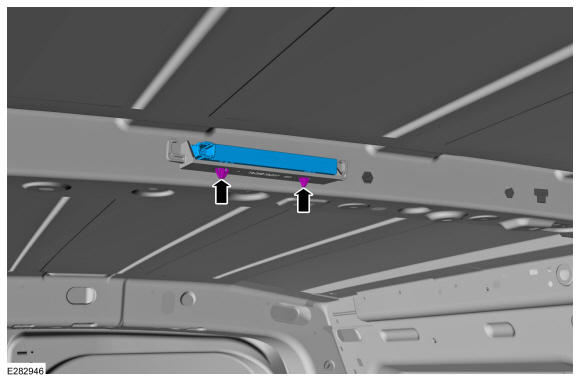

  3. Remove the Keyless Vehicle Center Antenna.
GFD574311Courtesy of FORD MOTOR COMPANY
