Hood Latch Release Cable: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .

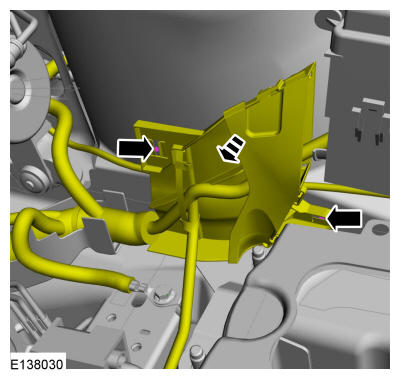

  2. Release the hood latch release cable from the routing bracket.
    GFD574242Courtesy of FORD MOTOR COMPANY
  3. Remove the front door scuff plate and position aside the front door weatherstrip.

    • Release the front door scuff plate retaining clips and remove the front door scuff plate.

    • Position aside the front door weatherstrip.

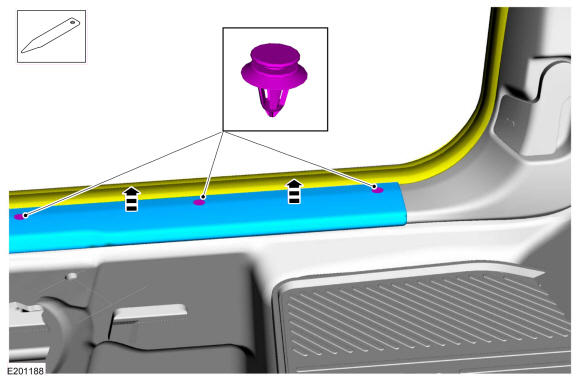

    GFD574243Courtesy of FORD MOTOR COMPANY
  4. Remove the hood latch release handle.

    1. Rotate the hood latch release handle.
    2. Release the hood latch release handle retaining clip.
    3. Remove the hood latch release handle.

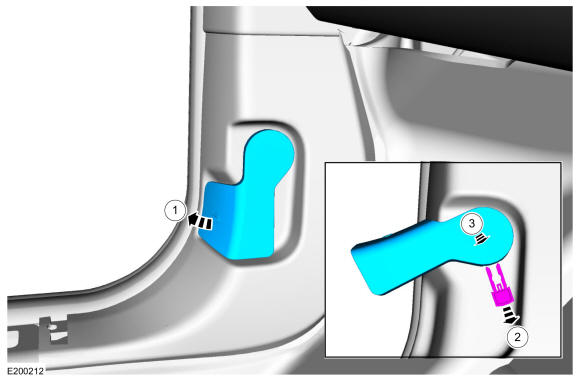

    GFD573676Courtesy of FORD MOTOR COMPANY
  5. Remove the retainers and the LH kick panel.

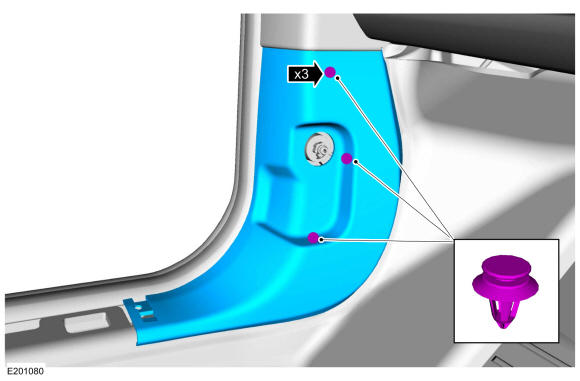

    GFD574244Courtesy of FORD MOTOR COMPANY

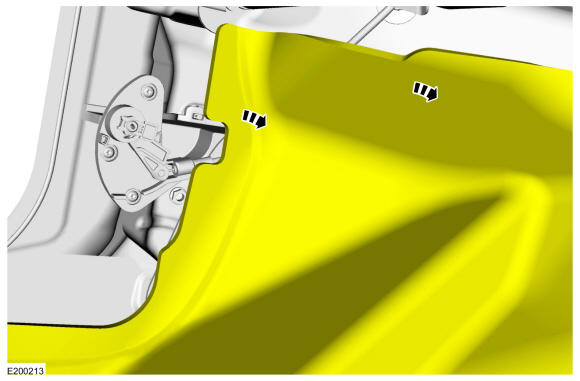

  6. Position aside the carpet.
    GFD574245Courtesy of FORD MOTOR COMPANY
  7. Remove the hood latch release.

    1. Disconnect the hood latch release cable from the retaining bracket.
    2. Remove the hood latch release cable from the hood latch release.
    3. Remove the cable end from the hood latch release.
    4. Remove the bolts and the hood latch release.

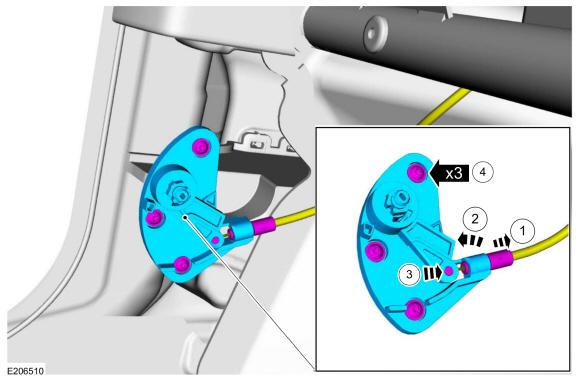

    GFD574246Courtesy of FORD MOTOR COMPANY
  8. Route the hood latch release cable through the to the engine compartment.

    1. Release the routing cable clip.
    2. Route the hood latch release cable through the to the engine compartment.

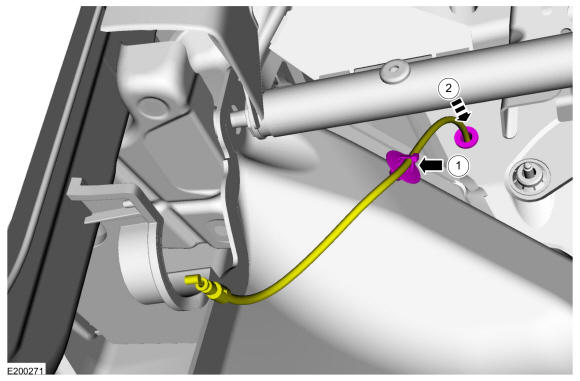

    GFD574247Courtesy of FORD MOTOR COMPANY
  9. Route the hood latch release cable and grommet through the cowl panel.

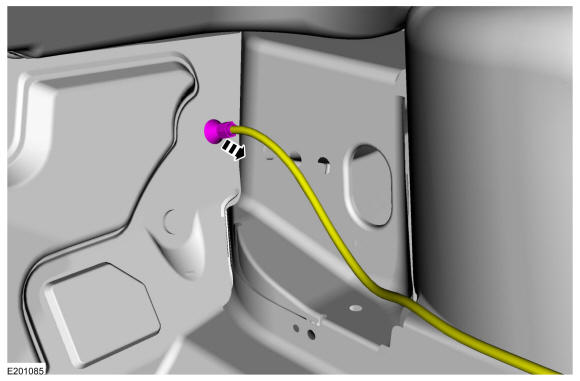

    GFD574248Courtesy of FORD MOTOR COMPANY
  10. Release the hood latch release cable from the routing clips.

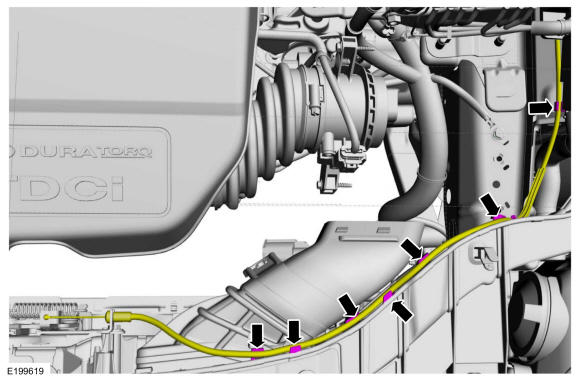

    GFD574249Courtesy of FORD MOTOR COMPANY
  11. Remove the hood latch release cable.

    1. Release the hood latch release cable from the retaining bracket.
    2. Disconnect the cable end and remove the hood latch release cable.

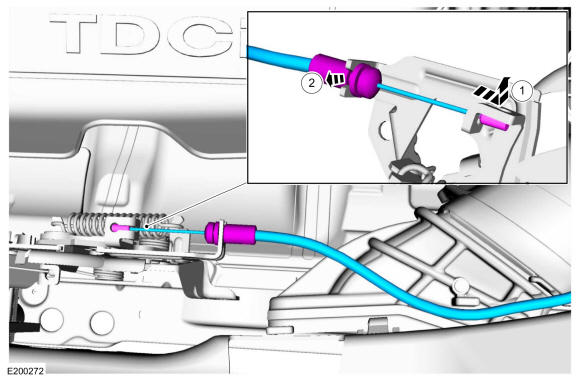

GFD574250Courtesy of FORD MOTOR COMPANY
