Hood Latch Release Cable: Installation

  1. Install the hood latch release cable.

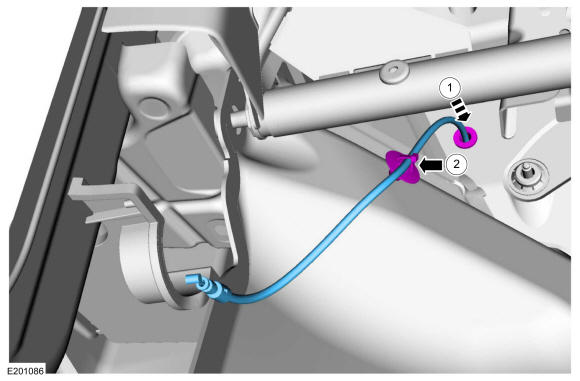

    1. Install the hood latch release cable through the cowl.
    2. Attach the cable routing clip.

    GFD574251Courtesy of FORD MOTOR COMPANY
  2. Route the hood latch release cable and seat the grommet in the cowl.
    GFD574248Courtesy of FORD MOTOR COMPANY
  3. Position and connect the hood latch release cable to the routing bracket.
    GFD574242Courtesy of FORD MOTOR COMPANY

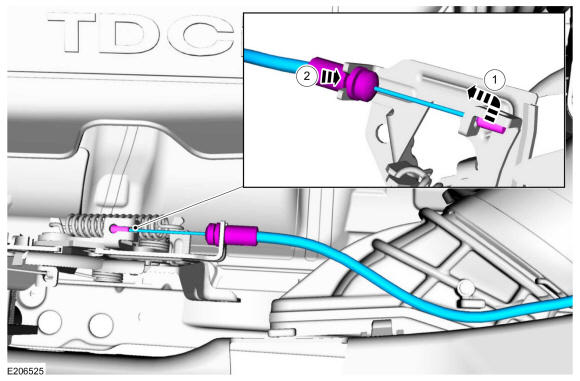

  4. Attach the hood latch release cable to the hood latch.

    1. Attach the cable end to the hood latch.
    2. Attach the hood latch release cable to the retaining bracket.

    GFD574252Courtesy of FORD MOTOR COMPANY
  5. Attach the hood latch release cable into the routing clips.
    GFD574249Courtesy of FORD MOTOR COMPANY

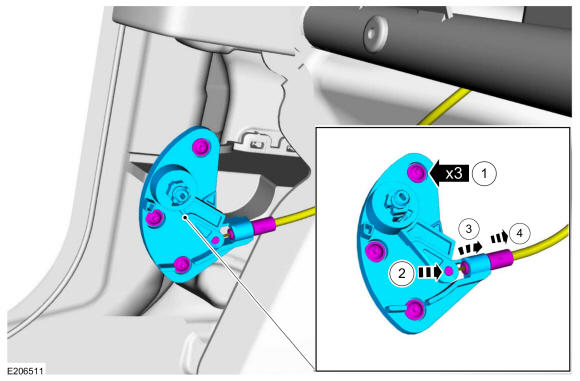

  6. Install the hood latch release.

    1. Install the hood latch release and the bolts.
    2. Connect the hood latch release cable to the hood latch release.
    3. Position the hood latch cable as shown.
    4. Attach the hood latch release cable to the hood latch release retaining bracket.

    GFD574253Courtesy of FORD MOTOR COMPANY

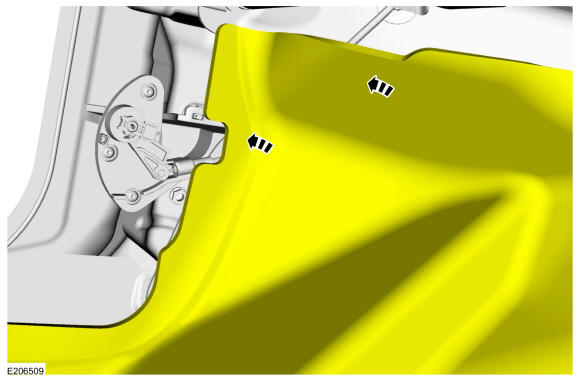

  7. Position the carpet.
    GFD574254Courtesy of FORD MOTOR COMPANY
  8. Install the LH kick panel and the retainers.
    GFD574244Courtesy of FORD MOTOR COMPANY

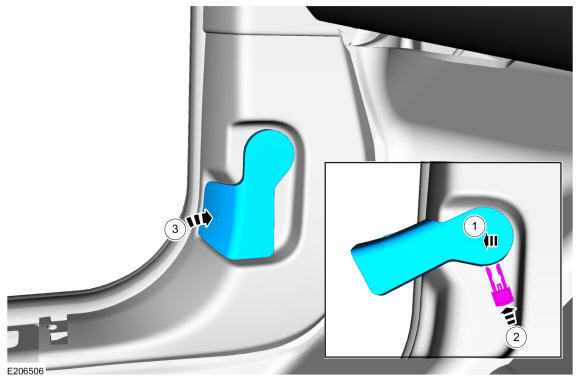

  9. Install the hood latch release handle.

    1. Install the hood latch release handle.
    2. Install the hood latch release handle retaining clip.
    3. Install the hood latch release handle retaining clip.

    GFD574255Courtesy of FORD MOTOR COMPANY

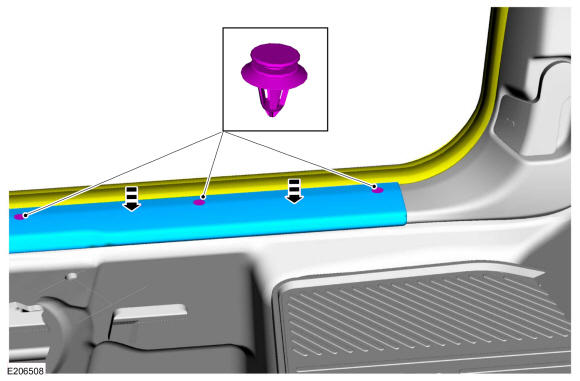

  10. Install the front door scuff plate and position the front door weatherstrip.

    • Position the front door weatherstrip.

    • Install the front door scuff plate retaining clips and install the front door scuff plate.

    GFD574256Courtesy of FORD MOTOR COMPANY
  11. Install the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .
