Liftgate Striker Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

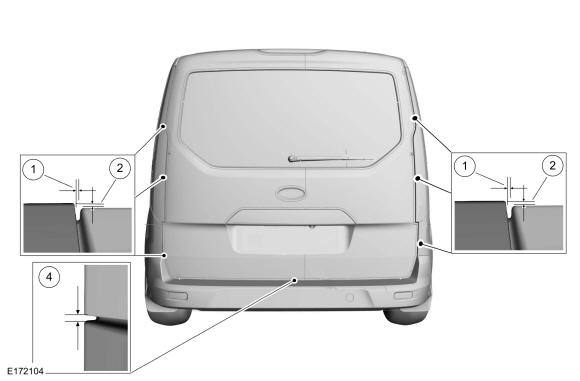

Check

1. 1. Dimension: 0.1575 +/-0.0787 in (4 +/-2 mm)
   2. Dimension: 0.0787 +/-0.0591 in (2 +/-1.5 mm)
   3. Dimension: 0.2362 +/-0.1575 in (6 +/-4 mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1. Loosen: 1 turn(s)

   Courtesy of FORD MOTOR COMPANY

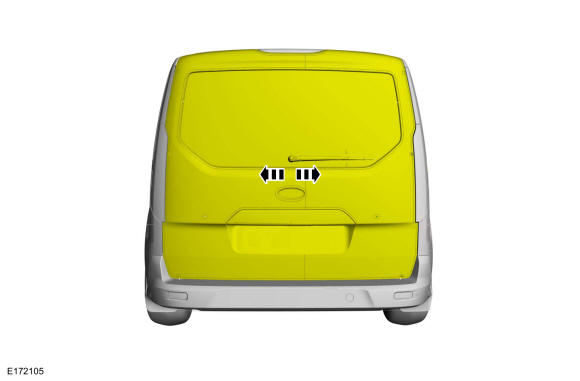

2. Courtesy of FORD MOTOR COMPANY

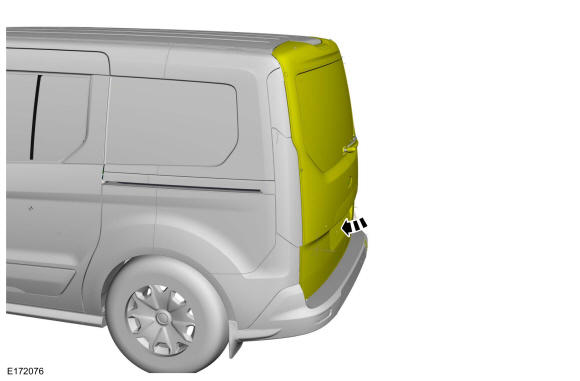

3. Courtesy of FORD MOTOR COMPANY

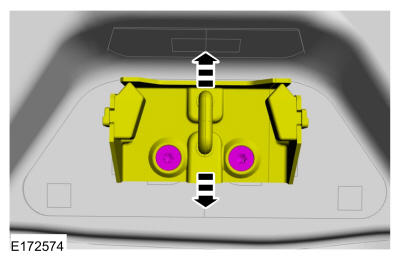

4. Courtesy of FORD MOTOR COMPANY

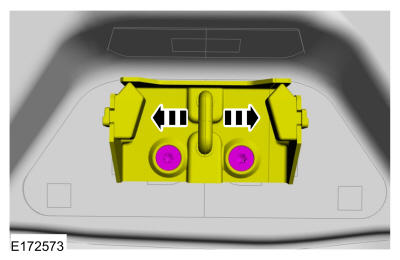

5. Courtesy of FORD MOTOR COMPANY

6. Torque: 18 lb.ft (24 Nm)

   Courtesy of FORD MOTOR COMPANY

7. On both sides.

   Courtesy of FORD MOTOR COMPANY

8. On both sides.

   Courtesy of FORD MOTOR COMPANY

9. On both sides. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

10. On both sides.

    Courtesy of FORD MOTOR COMPANY

11. Carefully close the liftgate.

    Courtesy of FORD MOTOR COMPANY

12. On both sides.

    Torque: 35 lb.in (4 Nm)

    Courtesy of FORD MOTOR COMPANY

13. On both sides.

    Courtesy of FORD MOTOR COMPANY

14. On both sides.

Courtesy of FORD MOTOR COMPANY
