Ignition Lock Cylinder: Disassembly

  1. Refer to: Ignition Lock Cylinder .

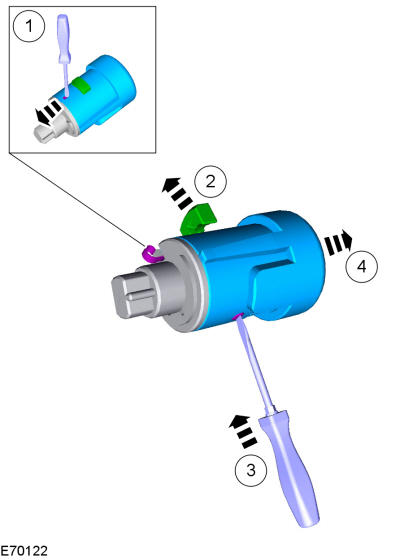

  2. GFD574316Courtesy of FORD MOTOR COMPANY
  3. GFD574317Courtesy of FORD MOTOR COMPANY
  4. GFD574318Courtesy of FORD MOTOR COMPANY
  5. GFD574319Courtesy of FORD MOTOR COMPANY
  6. NOTE: Note the position of the components before removal.

    1. Make sure to read the key code from the key entry to the end of the lock barrel in sequence.
    2. Make a note of the position and orientation of the ignition lock cylinder barrel tumblers.
    3. One group of tumblers is signed with a one digit number (1 to 5), the other group of tumblers is signed with a two digit number (11 to 15).

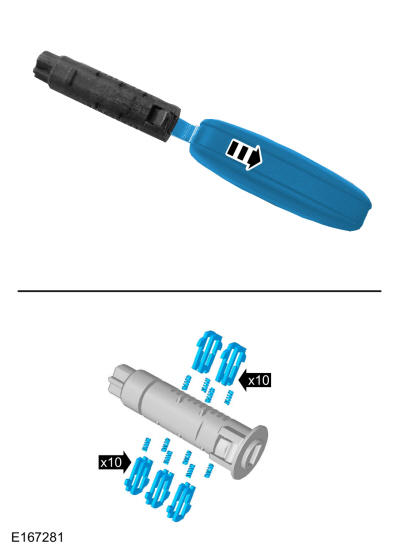

    GFD574320Courtesy of FORD MOTOR COMPANY
