Windshield Wiper Pivot Arm: Removal

NOTE: LH side shown, RH side similar.

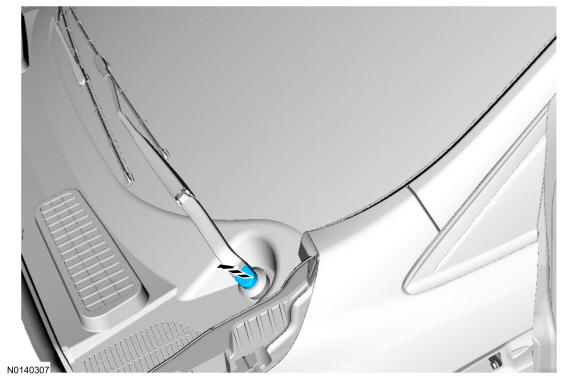

  1. Remove windshield wiper pivot arm nut cover.
    GFD574357Courtesy of FORD MOTOR COMPANY

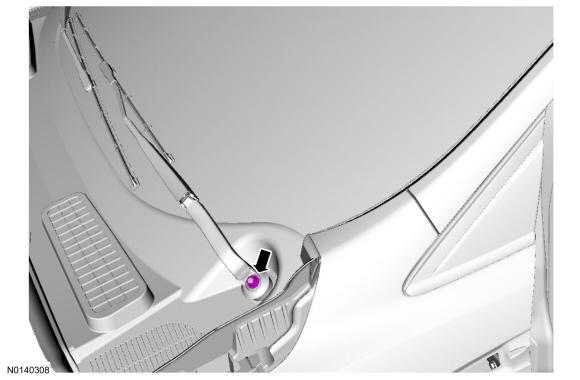

  2. Remove windshield wiper pivot arm nut.
    GFD574358Courtesy of FORD MOTOR COMPANY

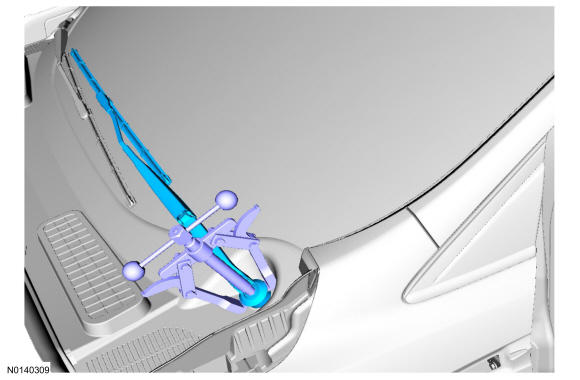

  3. Remove the wiper pivot arm. Use the General Equipment: Two Leg Puller
GFD574359Courtesy of FORD MOTOR COMPANY
