Steering Wheel Multifunction Switch: Removal

All vehicles

1. Remove the driver airbag. Refer to: Driver Airbag .

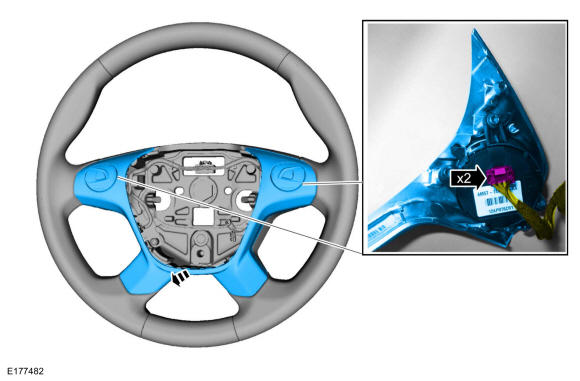

2. Using a suitable flat-bladed tool, remove the steering wheel switch bezel and disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

   Upper steering wheel switches

3. Remove the retainers and the steering wheel multifunction switch.

   Courtesy of FORD MOTOR COMPANY

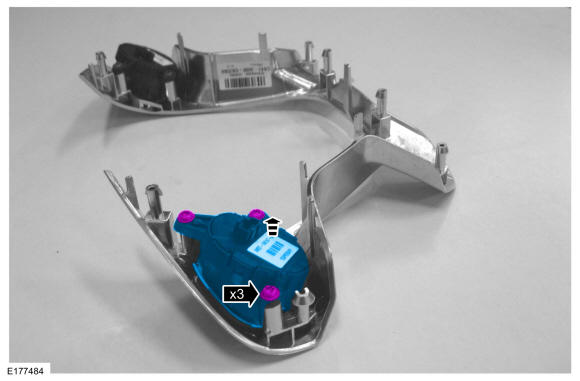

   Lower steering wheel switches

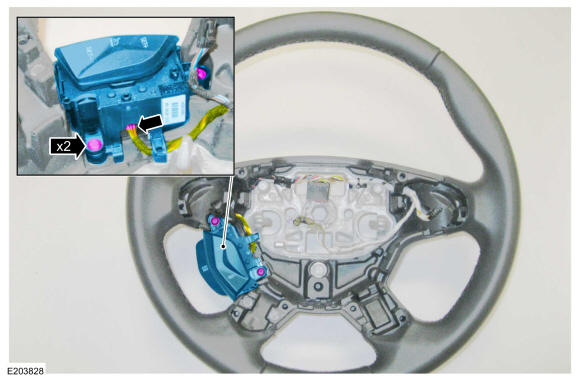

4. Disconnect the electrical connector, remove the retainers and the steering wheel multifunction switch.

Courtesy of FORD MOTOR COMPANY
