Steering Column Multifunction Switch LH: Removal

  1. Position the steering column in the full forward/down position.
    GFD570159Courtesy of FORD MOTOR COMPANY
  2. Rotate the steering wheel and release the retainers. Use the General Equipment: Flat Headed Screw Driver

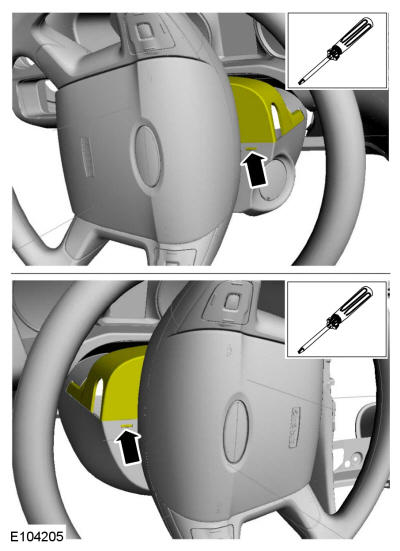

    GFD570168Courtesy of FORD MOTOR COMPANY
  3. Slide the upper steering column shroud forward and remove.

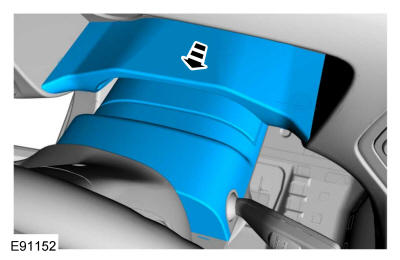

    GFD570170Courtesy of FORD MOTOR COMPANY
  4. Remove the retainers and the lower steering column shroud.
    GFD570162Courtesy of FORD MOTOR COMPANY

    Vehicles with lane departure warning

  5. NOTE: Make sure that the component terminals are not bent or damaged.

    Remove the retainers and the LH steering column multifunction switch

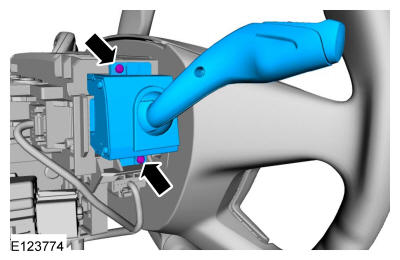

    GFD570171Courtesy of FORD MOTOR COMPANY

    Vehicles without lane departure warning

  6. NOTE: Make sure that the component terminals are not bent or damaged.

    1. Remove the retainers.
    2. Release the tabs and the LH steering column multifunction switch.

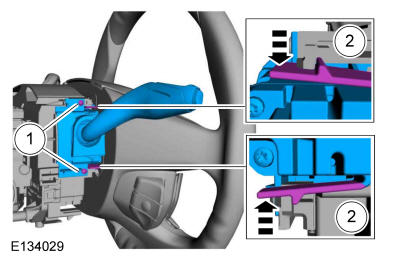

GFD570172Courtesy of FORD MOTOR COMPANY
